Ricoh SR3170 - Stapler Unit

Stapler Unit
1. Remove the following covers.
•
Front inner cover (page 9)
• Rear upper cover (page 7)

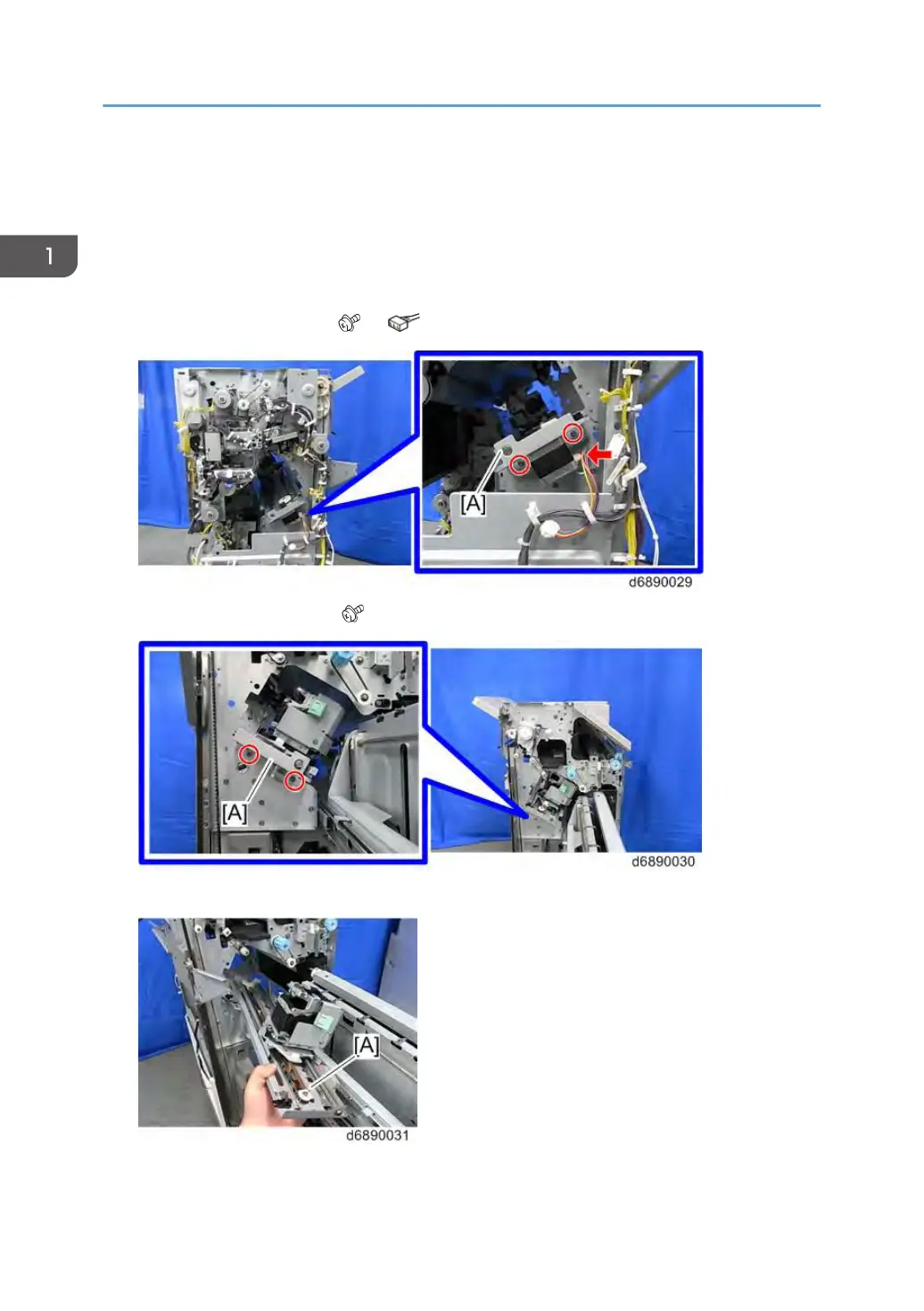

2. Stapler Unit rear side [A] (
×2, ×1)
3. Stapler Unit front side [A] ( ×2)
4. Stapler Unit [A]
