Ricoh SR3170 - Corner Stapling Unit

Corner Stapling Unit
Corner Stapling Unit

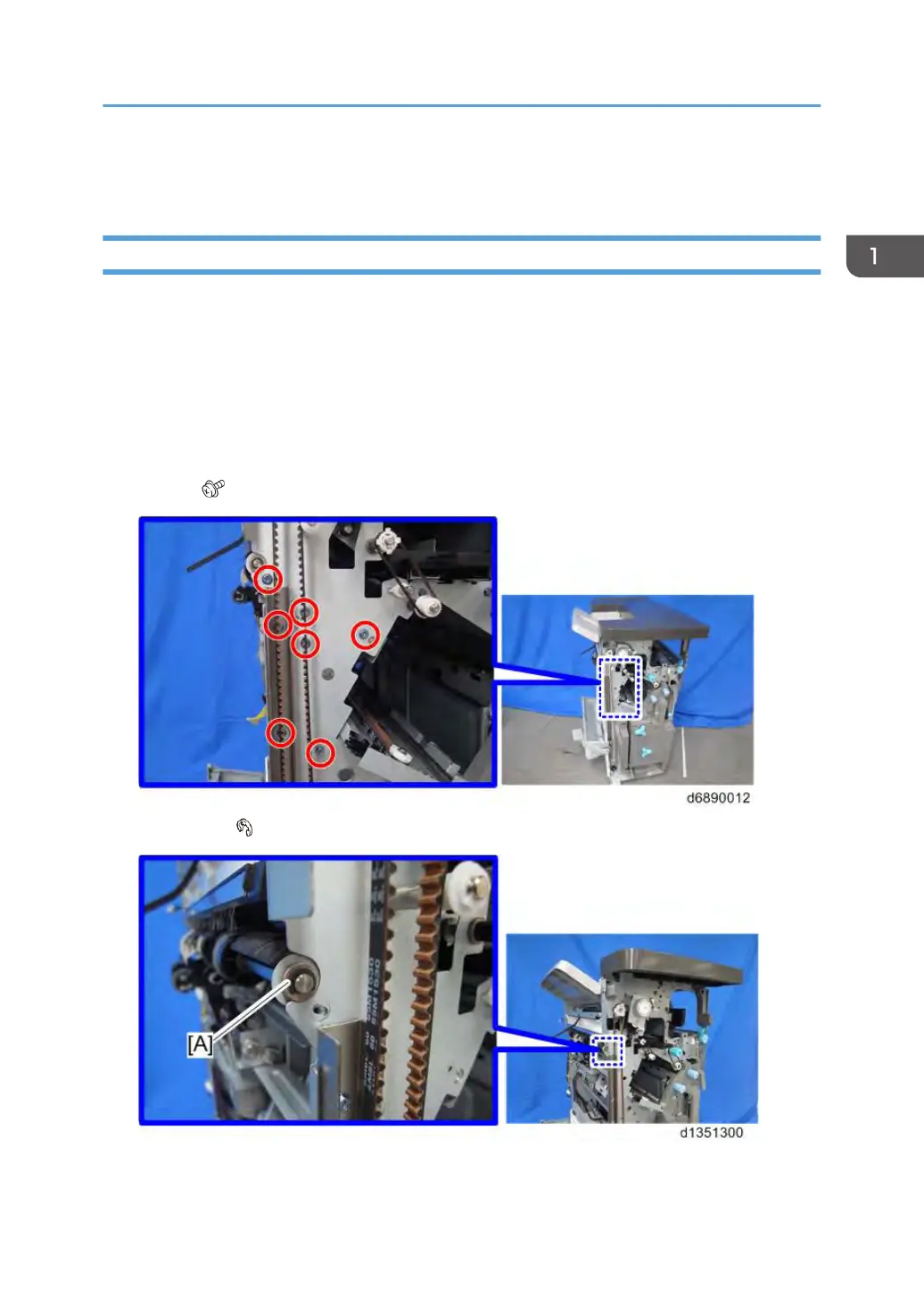

1. Remove the following covers.
•
Front cover (page 9)
• Front left side cover (page 9)
• Front inner cover (page 9)
• End fence (page 13
• Rear upper cover and Rear lower cover (page 7)
2. Screws (
×7).
3. Bushing [A] ( ×1).
