Ricoh SR3170 - Stapler Movement Motor; Stapler Movement HP Sensor

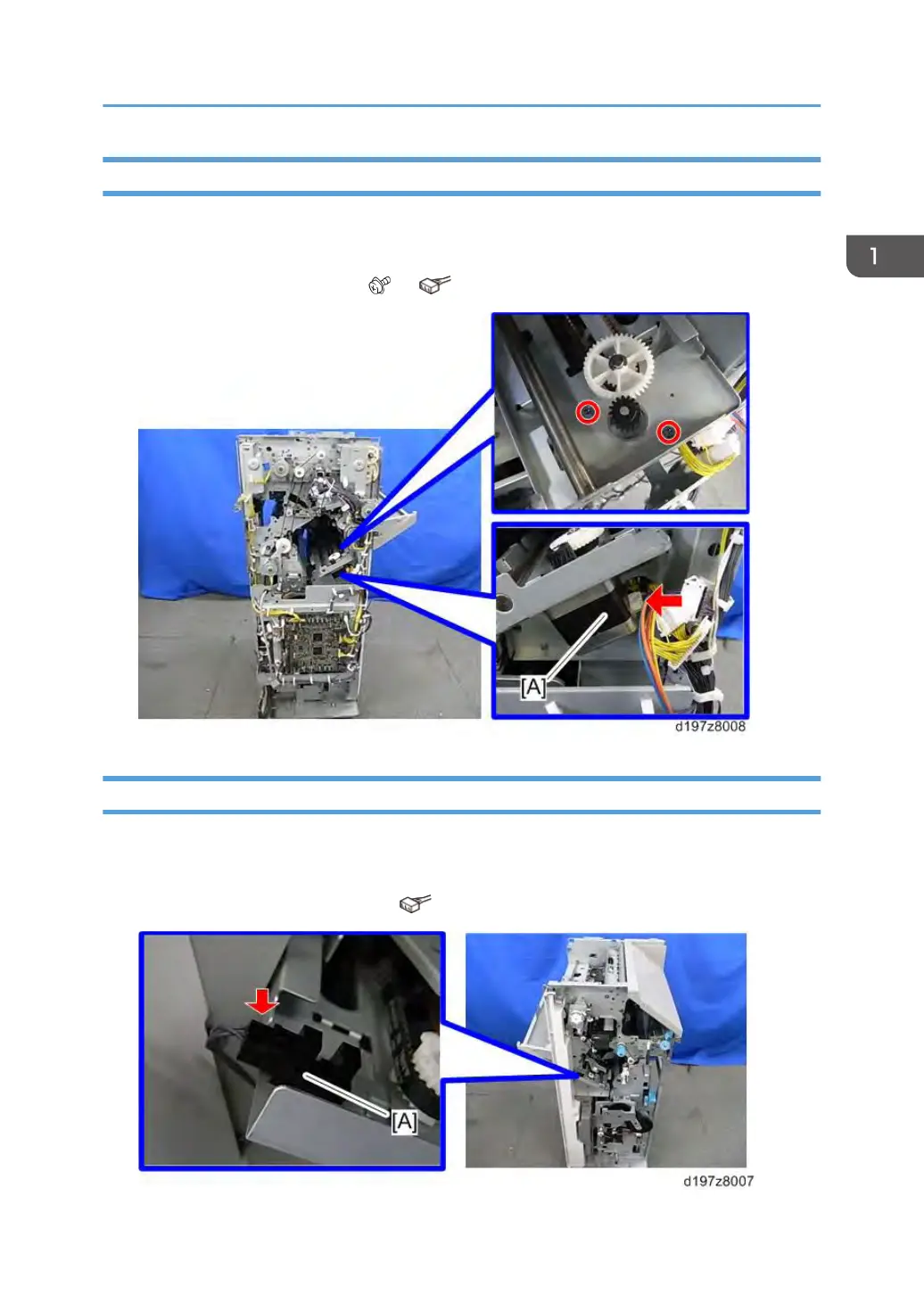

Stapler Movement Motor
1. Remove the following cover.
•
Rear upper cover (page 7)
2. Stapler Movement Motor [A] (
×2, ×1)
Stapler Movement HP Sensor
1. Remove the following covers.
•
Front inner cover (page 9)
2. Stapler Movement HP Sensor [A] (
×1)
Stapler Unit
