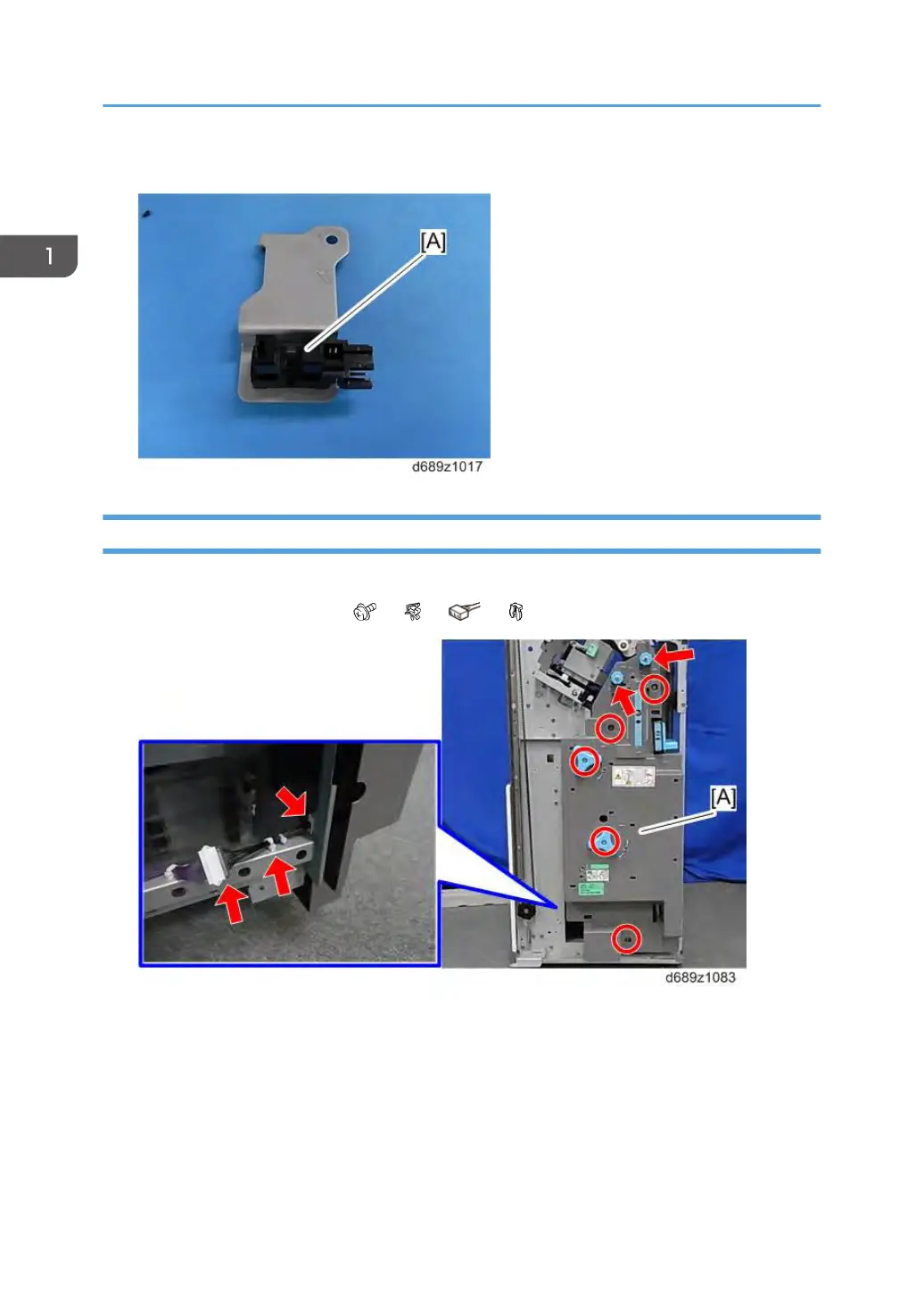

5. Folding blade cam HP sensor [A]
Bottom Paper Exit Sensor
1. Booklet unit (page 60)
2. Booklet unit front cover [A] ( ×5, ×2, ×1, ×2)
1. Replacement and Adjustment
78
