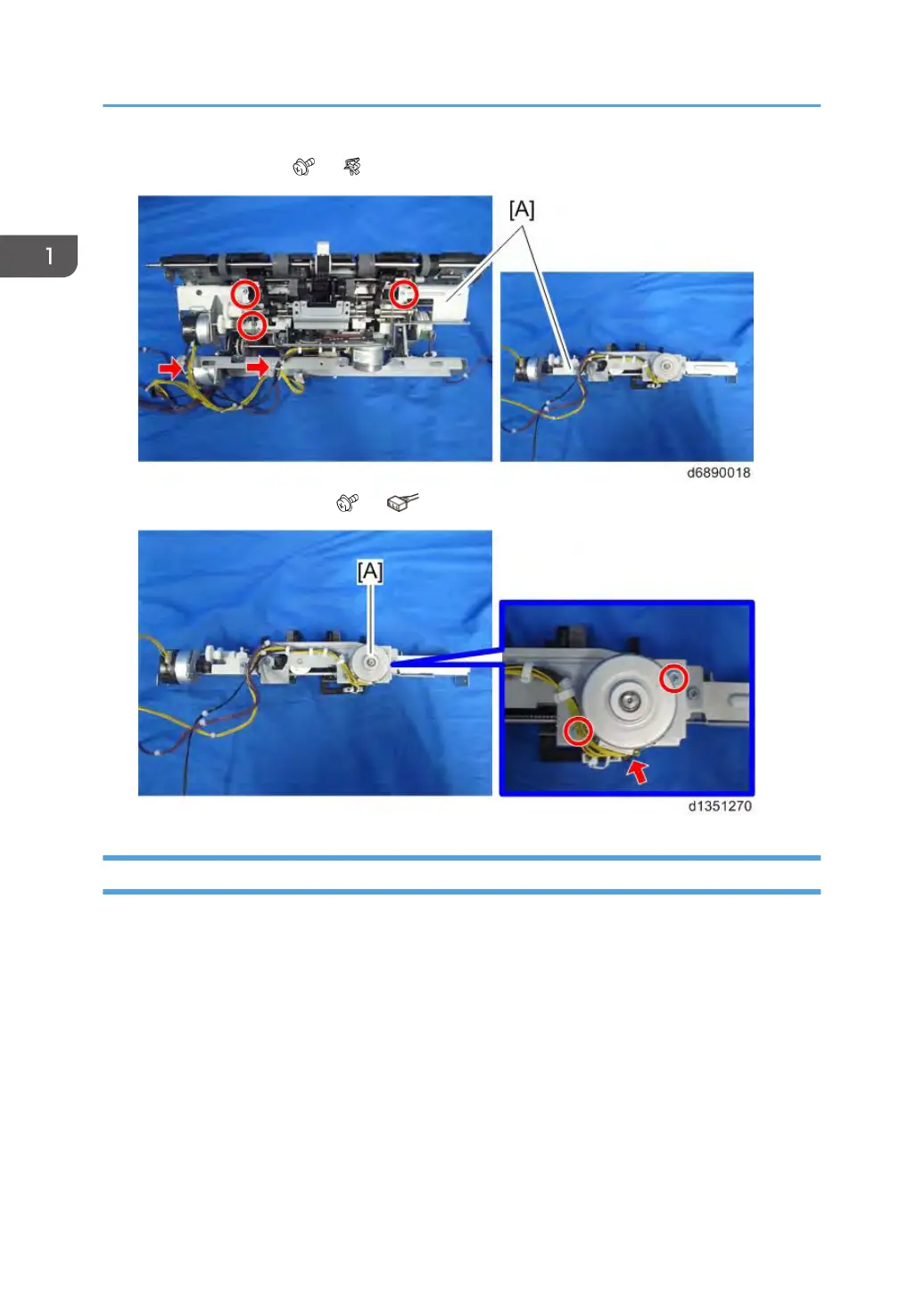

2. Stapler bracket [A] ( ×3, ×2)
3. Stacking roller motor [A] ( ×2, ×1)
Stacking Roller HP Sensor
1. Corner stapling unit (page 21)
1. Replacement and Adjustment
26
