3.

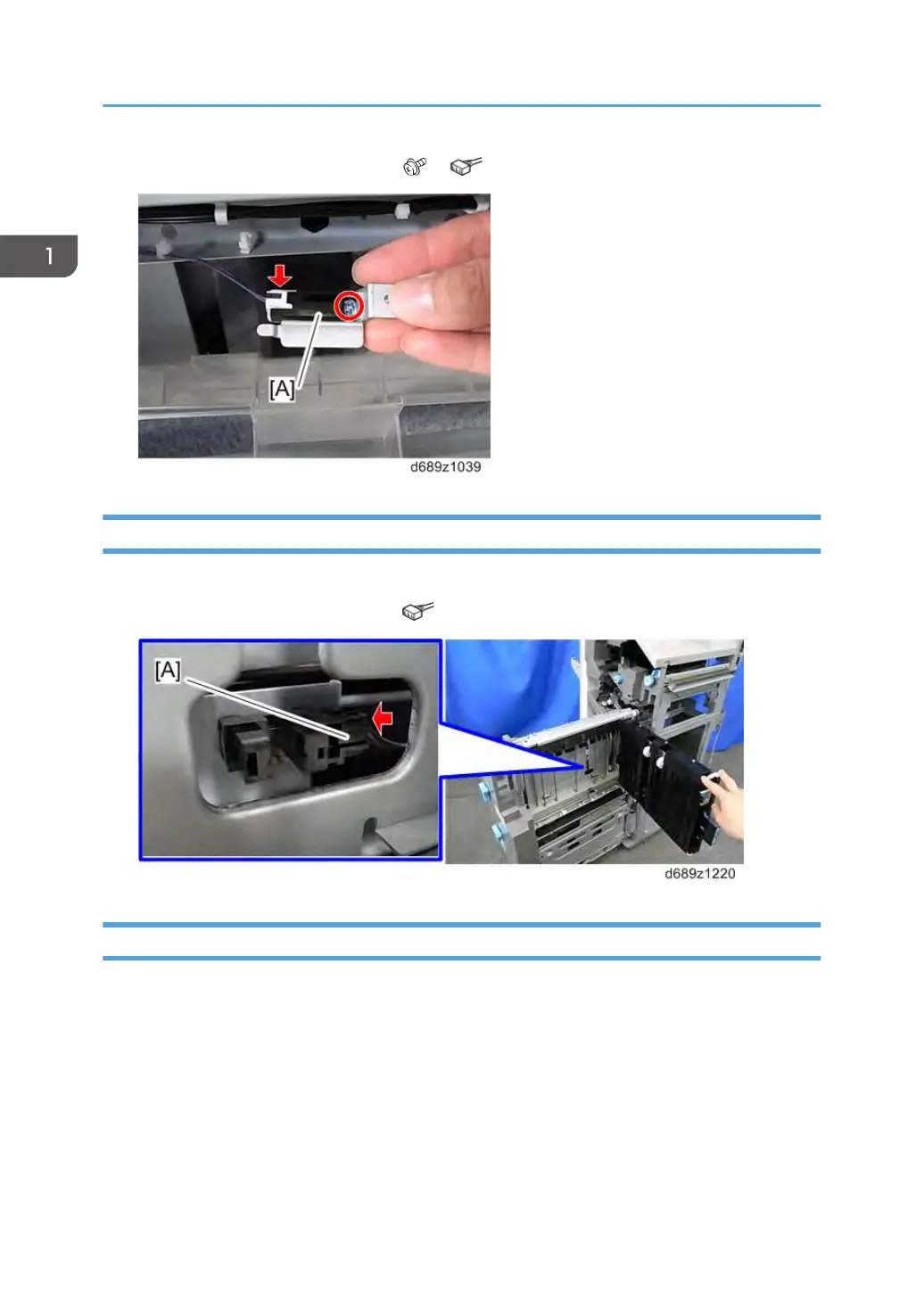

Booklet Paper Sensor (Lower) [A] (
×1,
×1)
Booklet Adjustment HP Sensor
1.
Pull out the booklet unit.
2.
Booklet adjustment HP sensor [A] (
×1)
Booklet Jogger HP Sensor
1.
Pull out the booklet unit.
