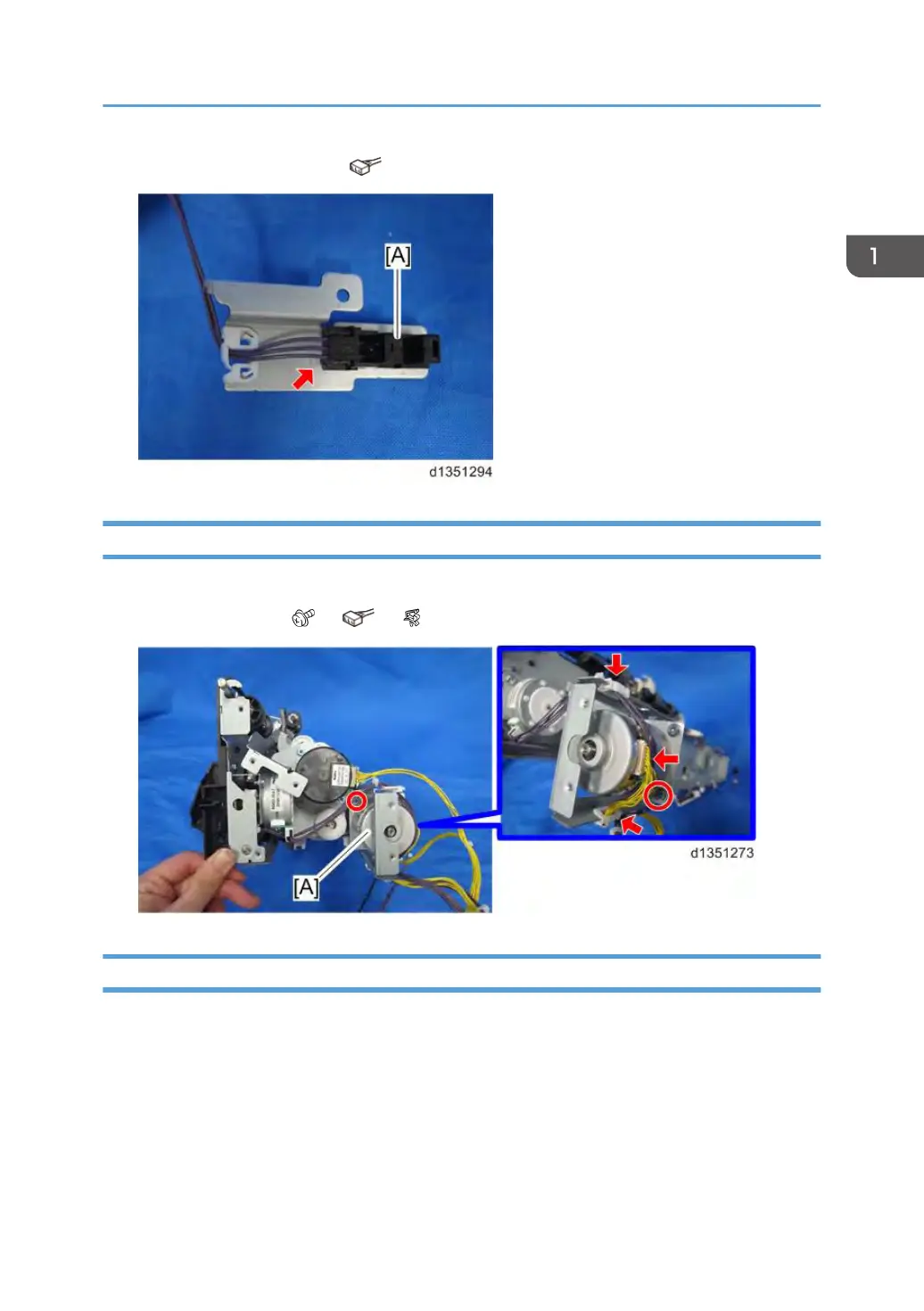

5. Shift tray paper sensor [A] ( ×1)
Feed Out Motor
1. Corner stapling unit (page 21)
2. Feed out motor [A] ( ×2, ×1, ×2)
Feed Out Guide HP Sensor
1. Corner stapling unit (page 21)
Corner Stapling Unit
33
