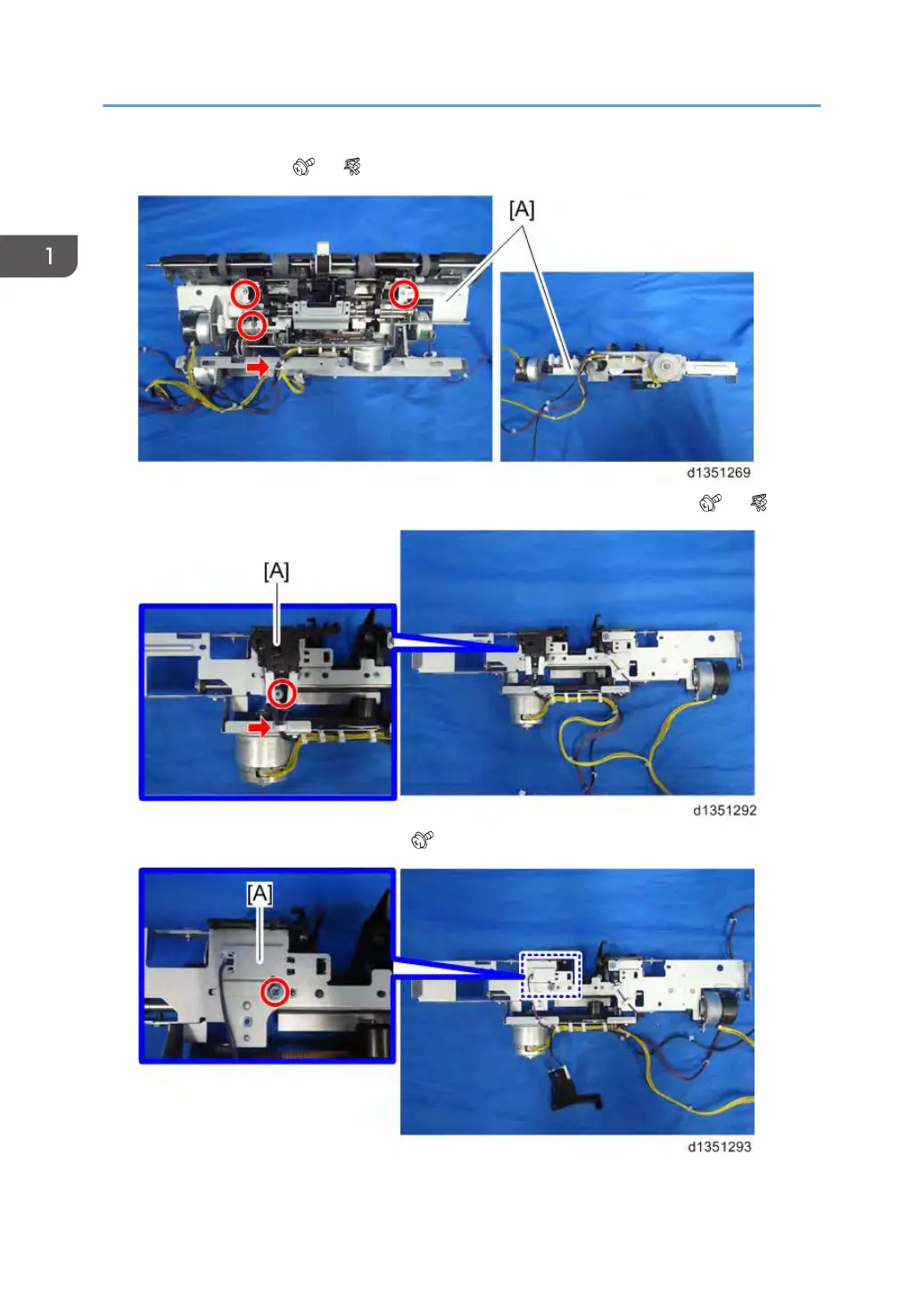

2. Stapler bracket [A] ( ×3, ×1)
3. Turn back the stapler bracket, and remove the tray upper limit switch [A] ( ×1, ×1)
4. Shift tray paper sensor bracket [A] ( ×1)
