Punch Unit
The punch unit is already adjusted in the factory, so you don’t need to adjust it. When you need to
replace the parts of the punch unit, replace the whole unit.
• Do not disassemble the punch unit. This unit is precisely adjusted in the factory.
•
Do not drop or give a shock to the unit when you replace it. The unit could be damaged.
1. Remove the following covers.
• Rear upper cover and rear lower cover (page 7)

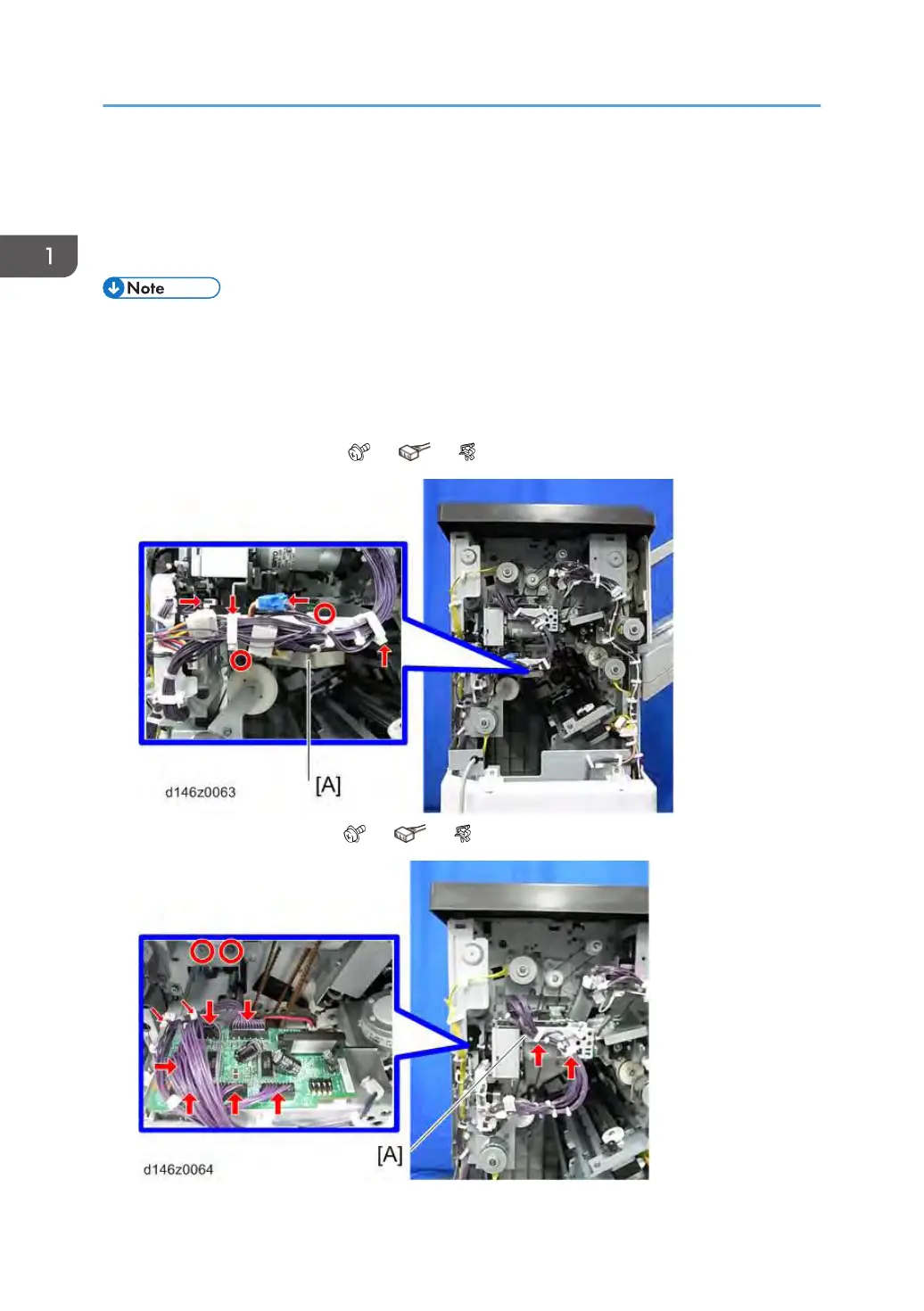

2. Stepper motor bracket [A] (
×2, ×2, x2)
3. Pull out the punch unit [A] ( ×2, ×5, ×4)
1. Replacement and Adjustment
86
