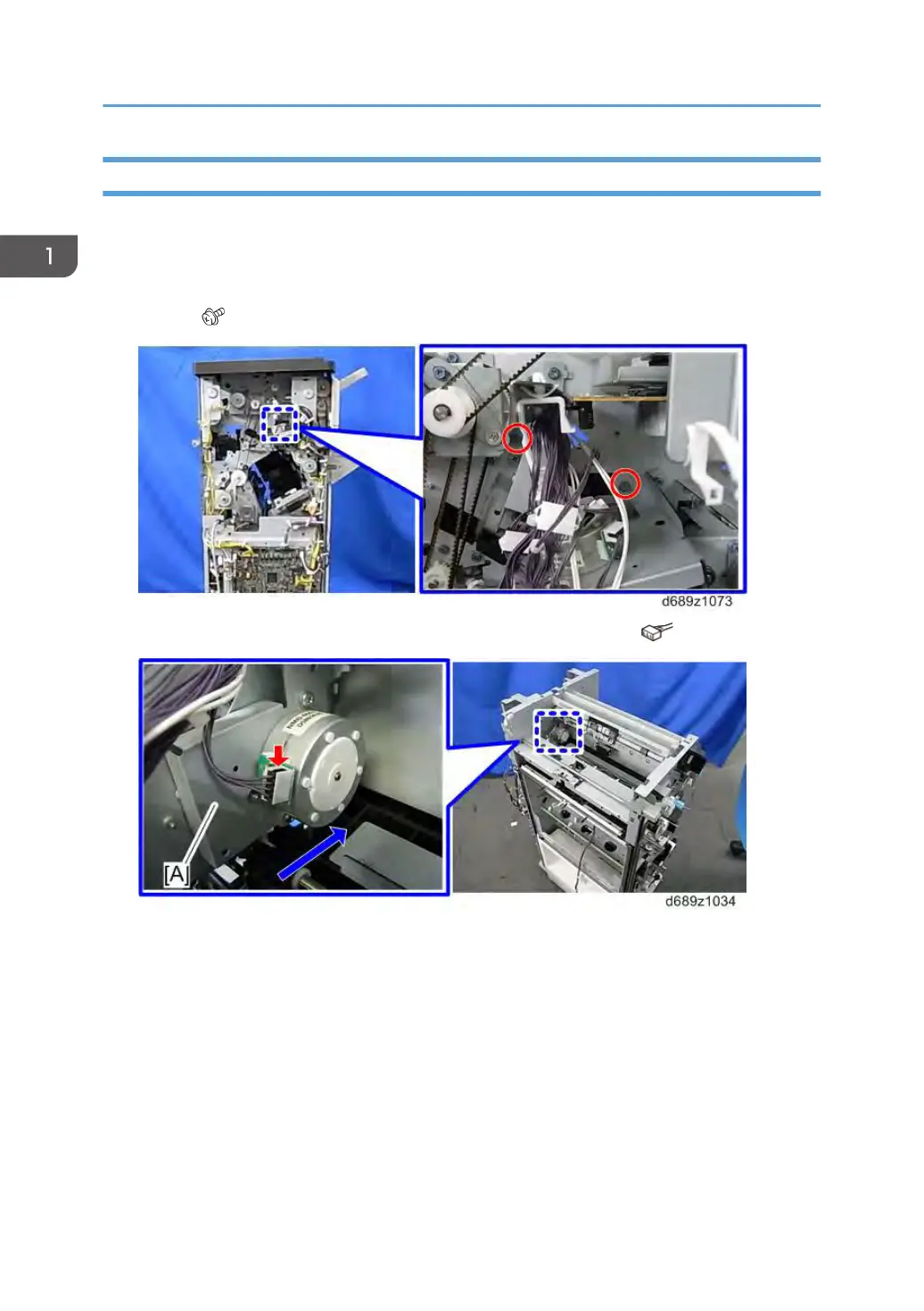

Lower Junction Gate Motor
1. Rear upper cover (page 7)
2. Upper cover (page 7)
3. Proof tray (page 12)
4. Screws ( ×2)
5. Remove the lower junction gate motor bracket [A] while sliding it ( ×1)
1. Replacement and Adjustment
44
