Paper Exit Gate HP Sensor
1. Rear upper cover (page 7)
2. Proof tray (page 12)

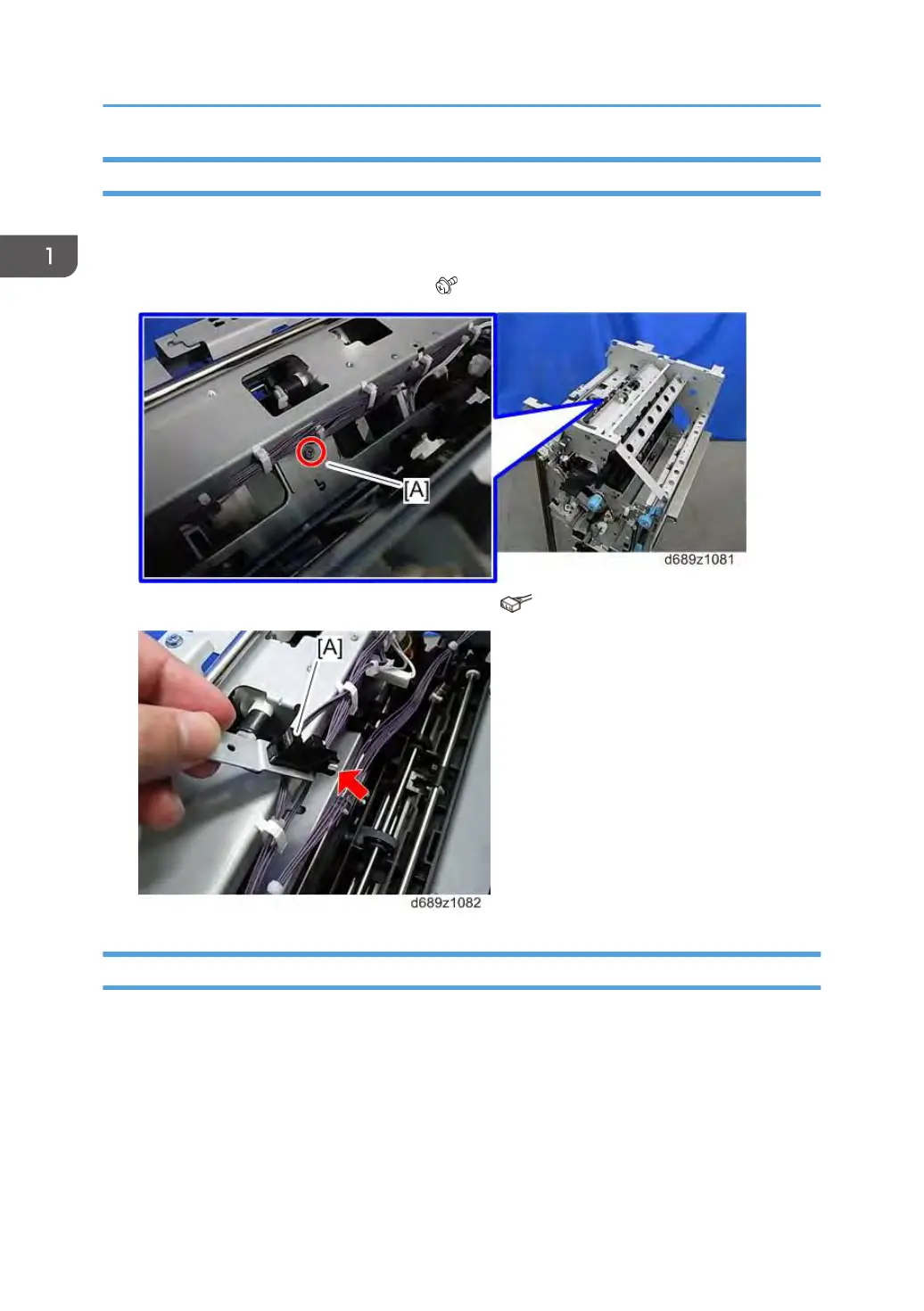

3. Paper exit gate HP sensor Bracket [A] ( ×1)
4. Turn back the bracket to remove the connector ( ×1)
Corner Stapling Paper Sensors
1. Upper cover (page 7)
2. Proof tray (page 12)
