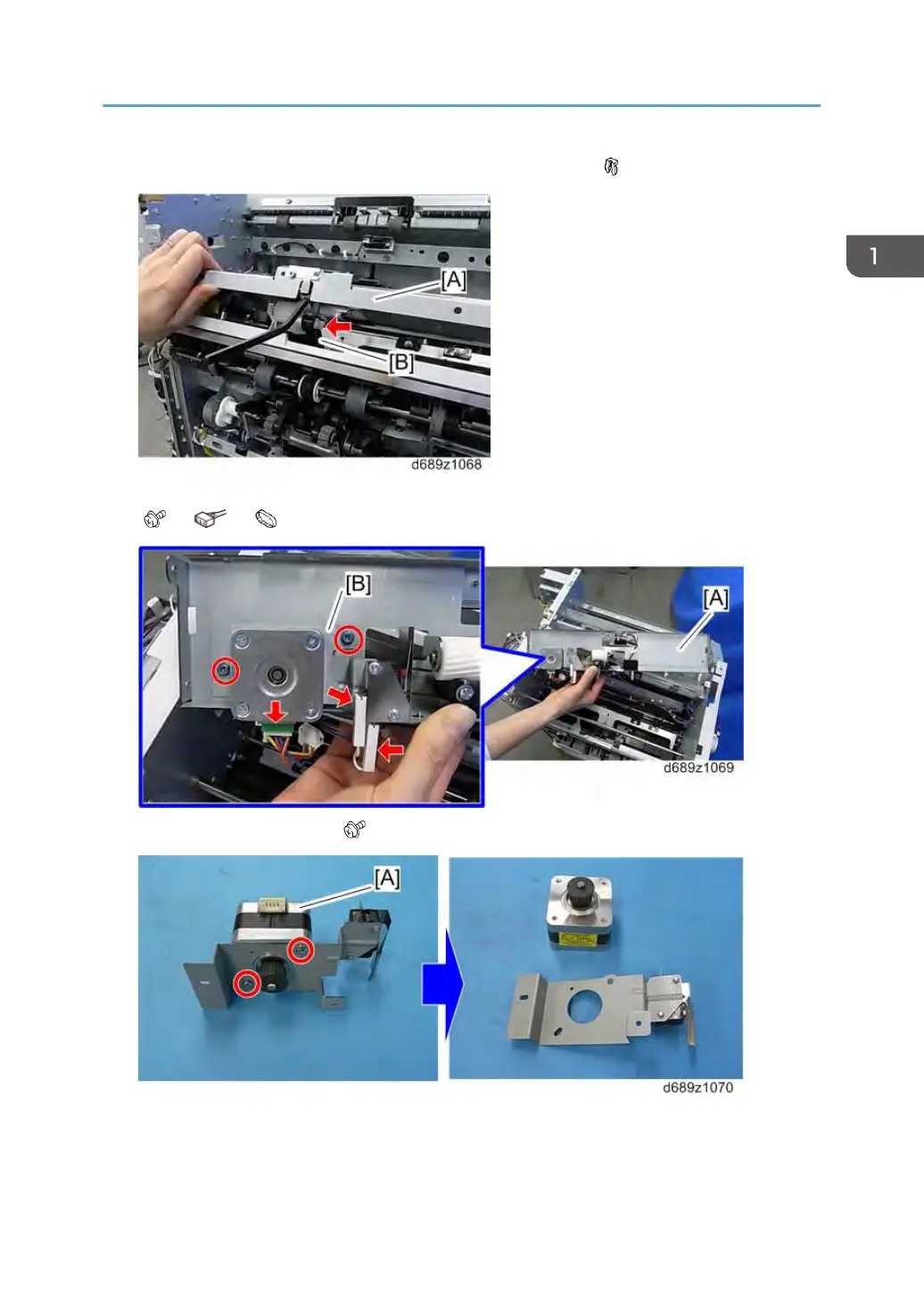

9. Hold up the paper exit guide plate [A] to remove the clip [B] ( ×1)
10. Turn back the paper exit guide plate [A] to remove the paper exit gate motor bracket [B]
( ×2, ×3, ×1)
11. Paper exit gate motor [A] ( ×2)
