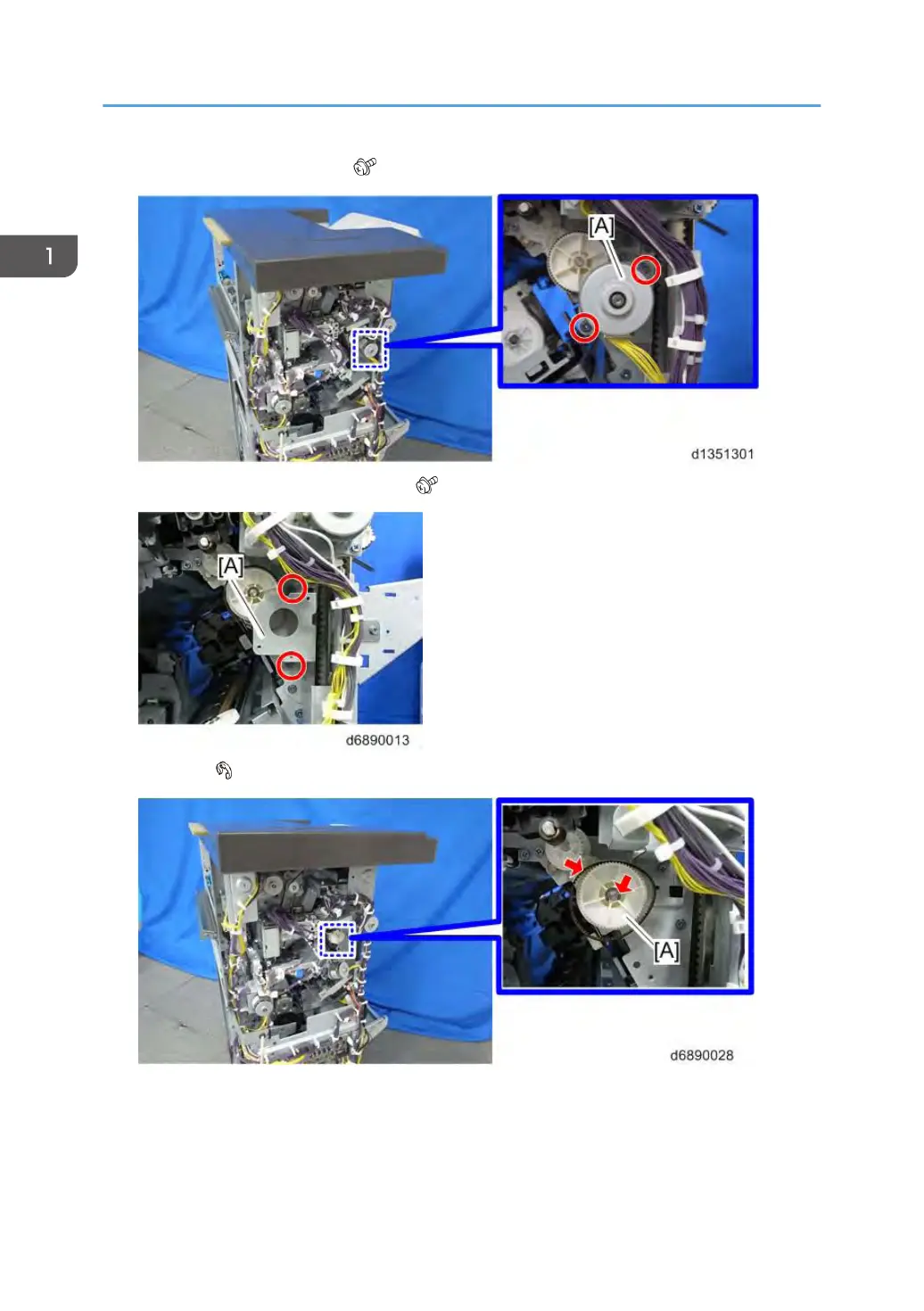

4. Middle transport motor [A] ( ×2)
5. Middle transport motor bracket [A] ( ×2)
6. Gear [A] ( ×1, belt × 1)
