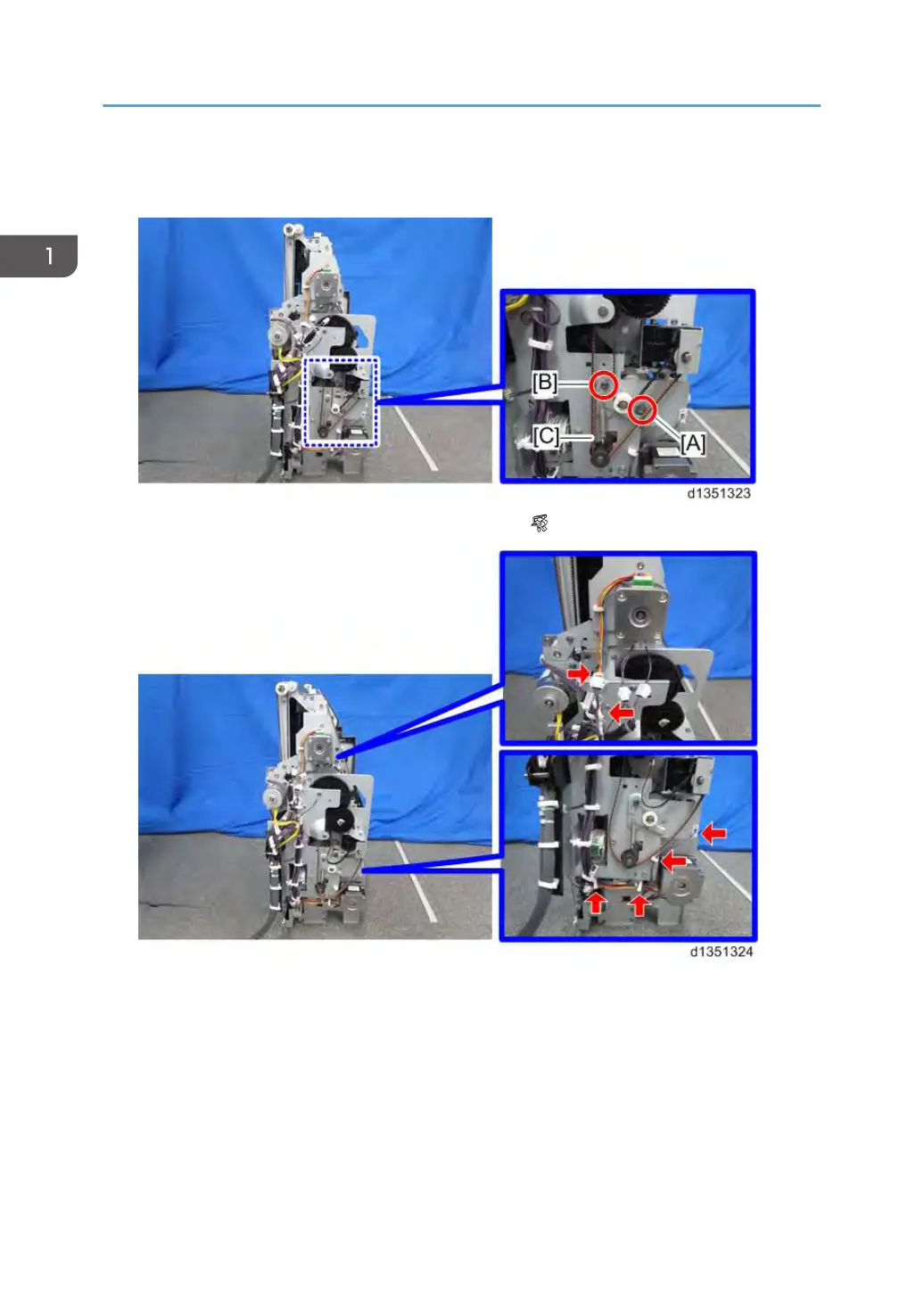

4. Loosen the screw [B] of the belt holding bracket, and then loosen the press folding motor
belt [C].
5. Release the harness from the clamps shown below ( ×6)
