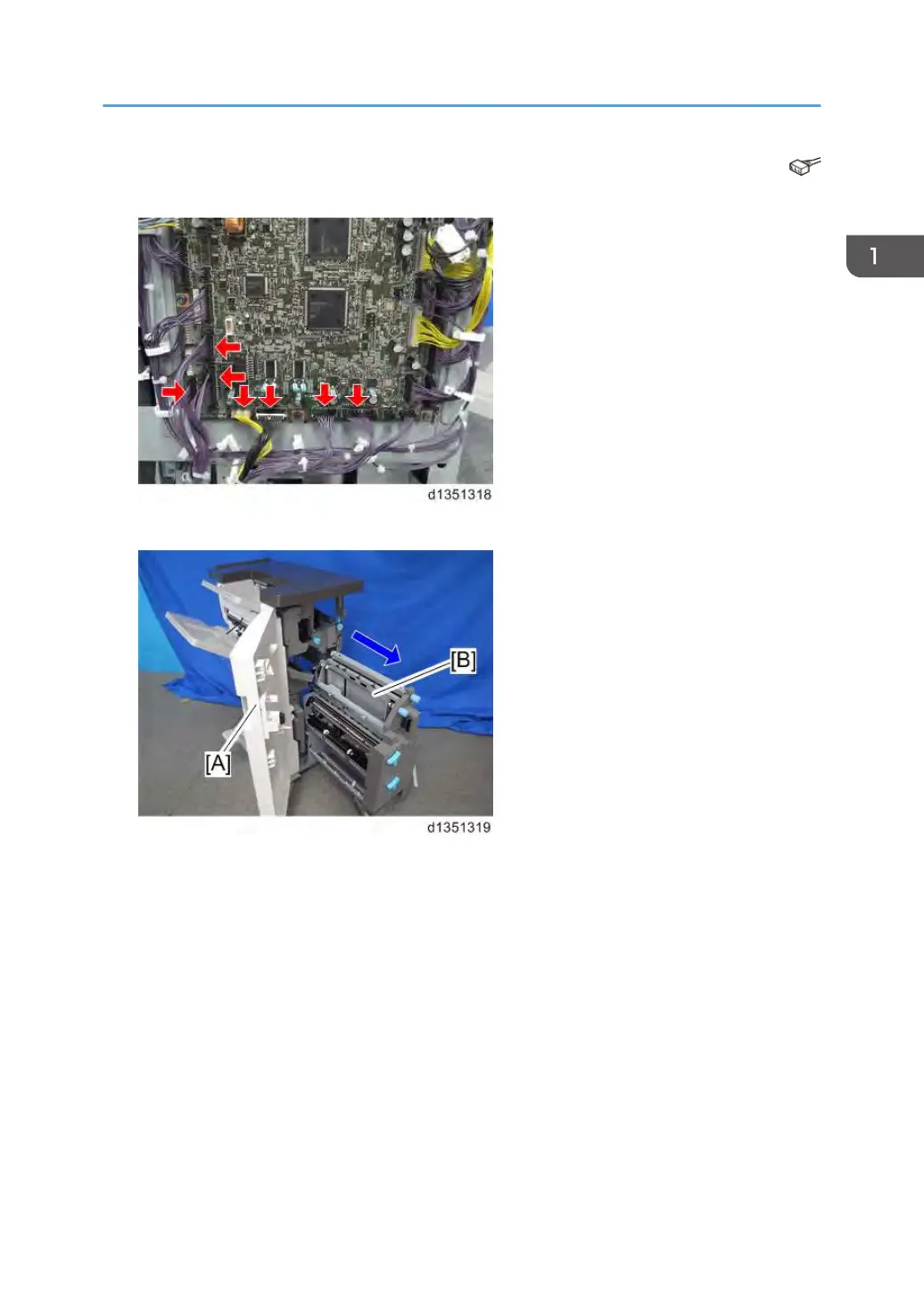

4. Disconnect the 7 connectors of the booklet unit from the main board as shown below (
×7)
5. Open the front door [A] and pull out the booklet unit [B].
Booklet Unit (D688 Only)
