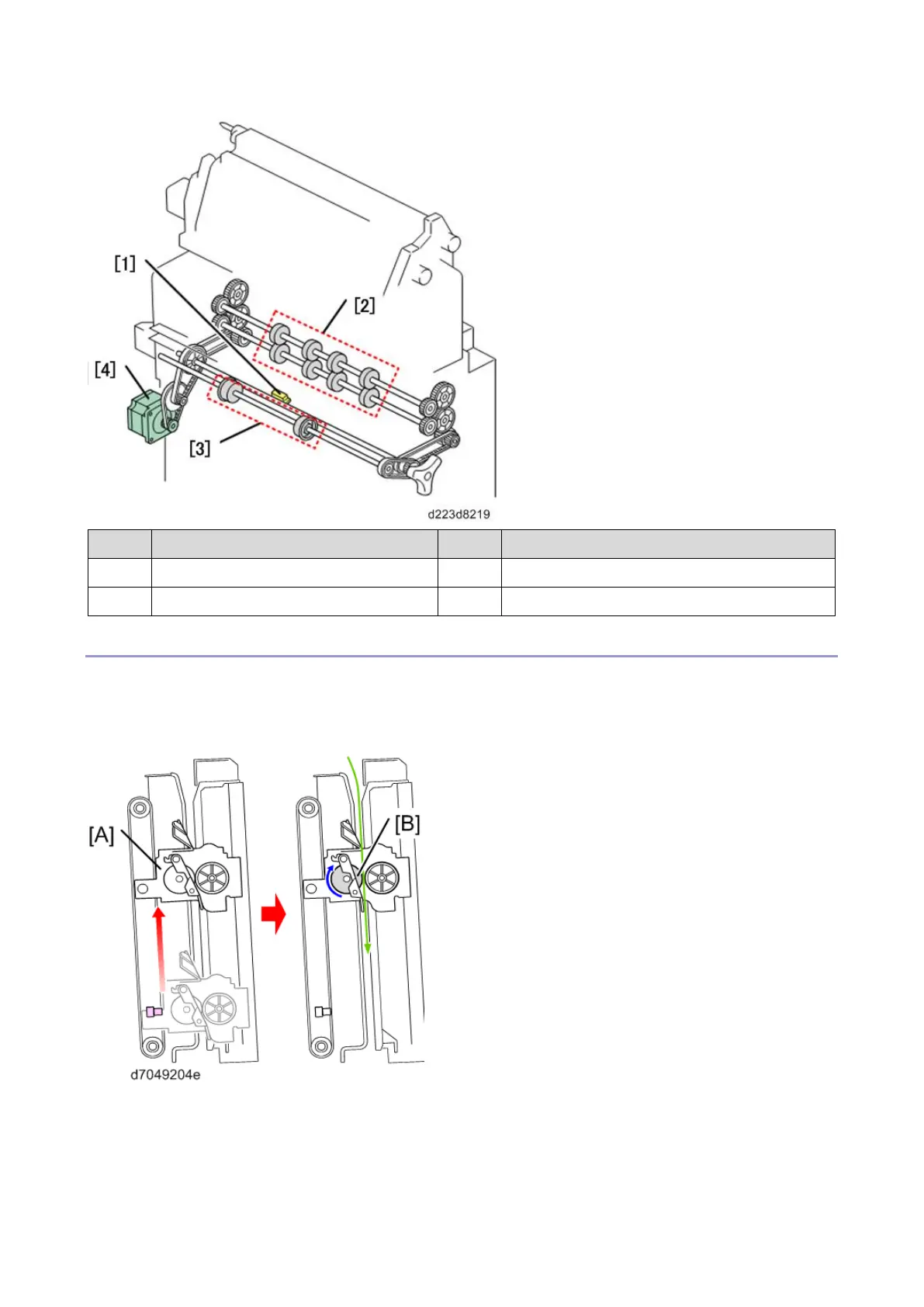

1.Detailed Descriptions
43
No.
Name
No.
Name
1
Booklet Exit Sensor (S6)
3
Fold Unit Exit Roller
2
Fold Roller
4
Fold Transport Motor (STM9)
Booklet Staple Transport
When paper begins to go through the booklet staple path, the shift roller unit [A] moves up to its
operating position in order to be ready to transport paper. The shift roller lift motor moves the shift roller
unit [A]. The Shift Roller drive Motor (DCM11) rotates the shift roller [B] to transport paper to the bottom.
After the transportation has finished, the shift roller unit [B] moves up away from the paper face. While
the shift roller unit moves up, the shift roller [A] rotates to feed paper out to the bottom. Then the shift
roller unit drops to bump the stack junction gate [C] onto the edge of the paper stack. With this
operation, the paper stack is aligned.
