Ricoh SR4120 - Paper Exit Cover

1.Replacement and Adjustment
8

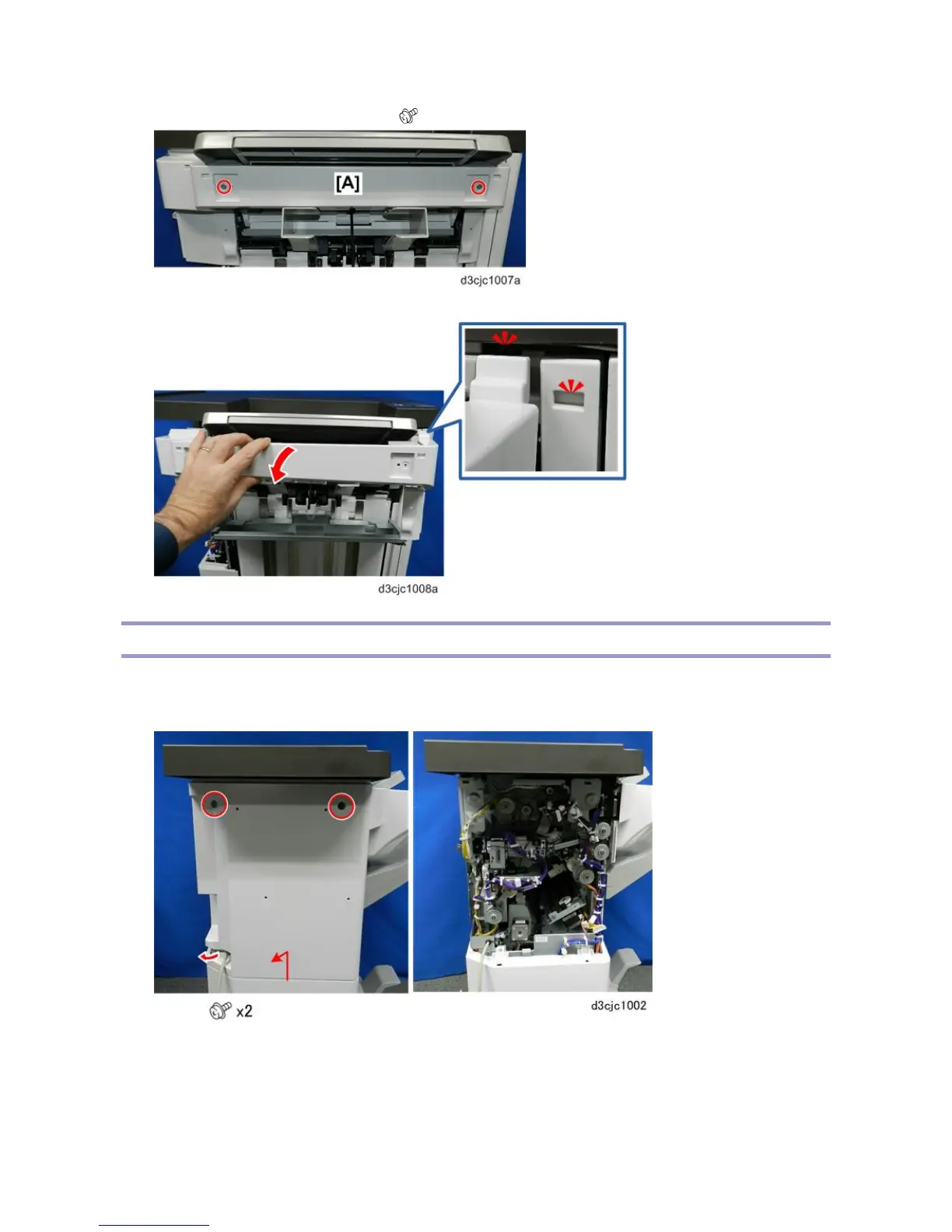

6. Remove paper guide cover [A] screws ( x2).
7. Disconnect the front tab, and then remove the cover.
Paper Exit Cover
1. Disconnect the finisher from the main frame.
2. Remove the rear cover.
