Ricoh SR4120 - Paper Guide HP Sensor

1.Replacement and Adjustment
33

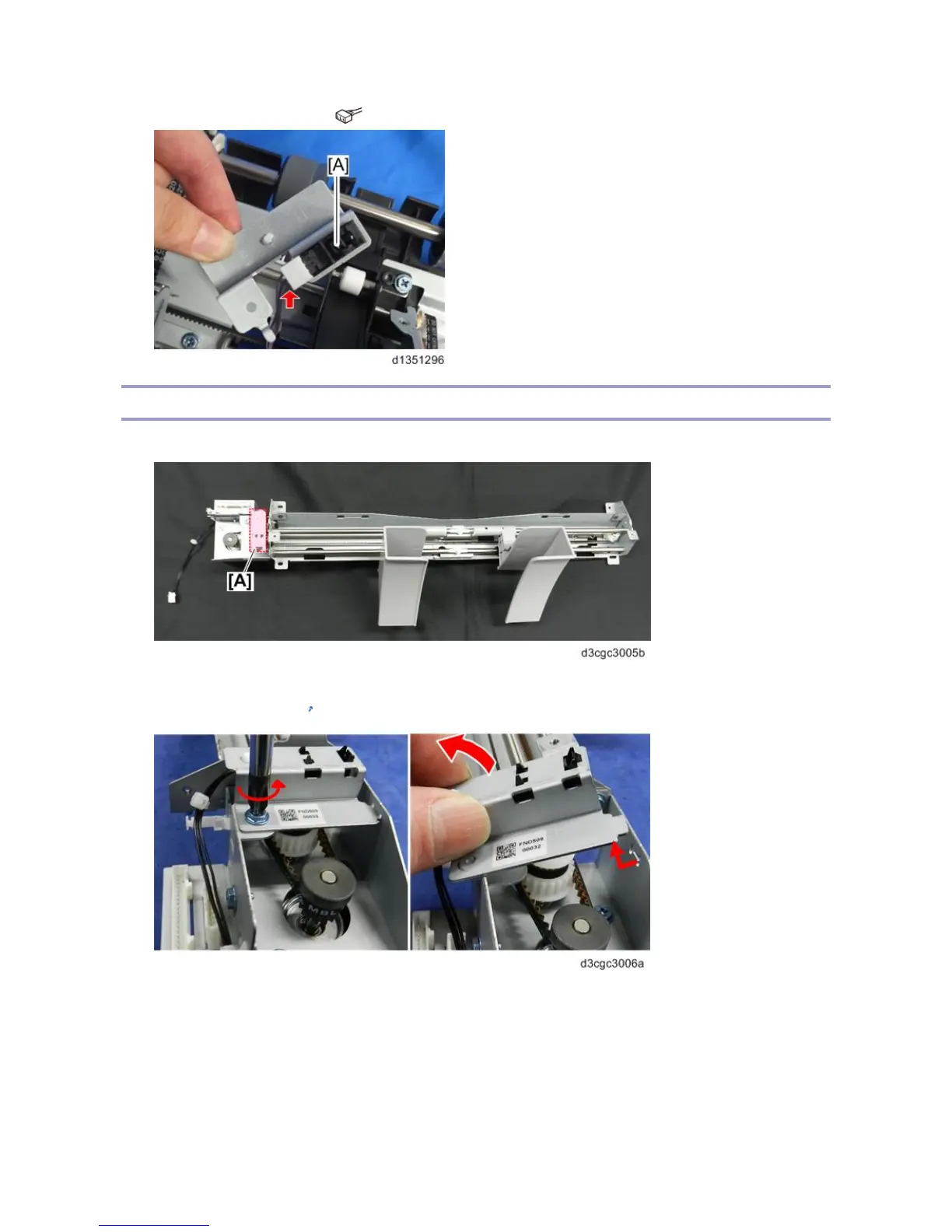

4. Staple tray paper sensor [A] ( x 1)
Paper Guide HP Sensor
1. The paper guide HP sensor is located at [A].
2. Remove the paper guide unit. Paper Guide Unit
3. Remove sensor bracket ( x1).
