Ricoh SR4120 - Main Motors; Corner Stapling Unit

1.Replacement and Adjustment
19
Main Motors
Corner Stapling Unit
1. Remove the following covers. Covers
• Front door
• Front left side cover
• End fence
• Rear upper cover
• Rear lower cover

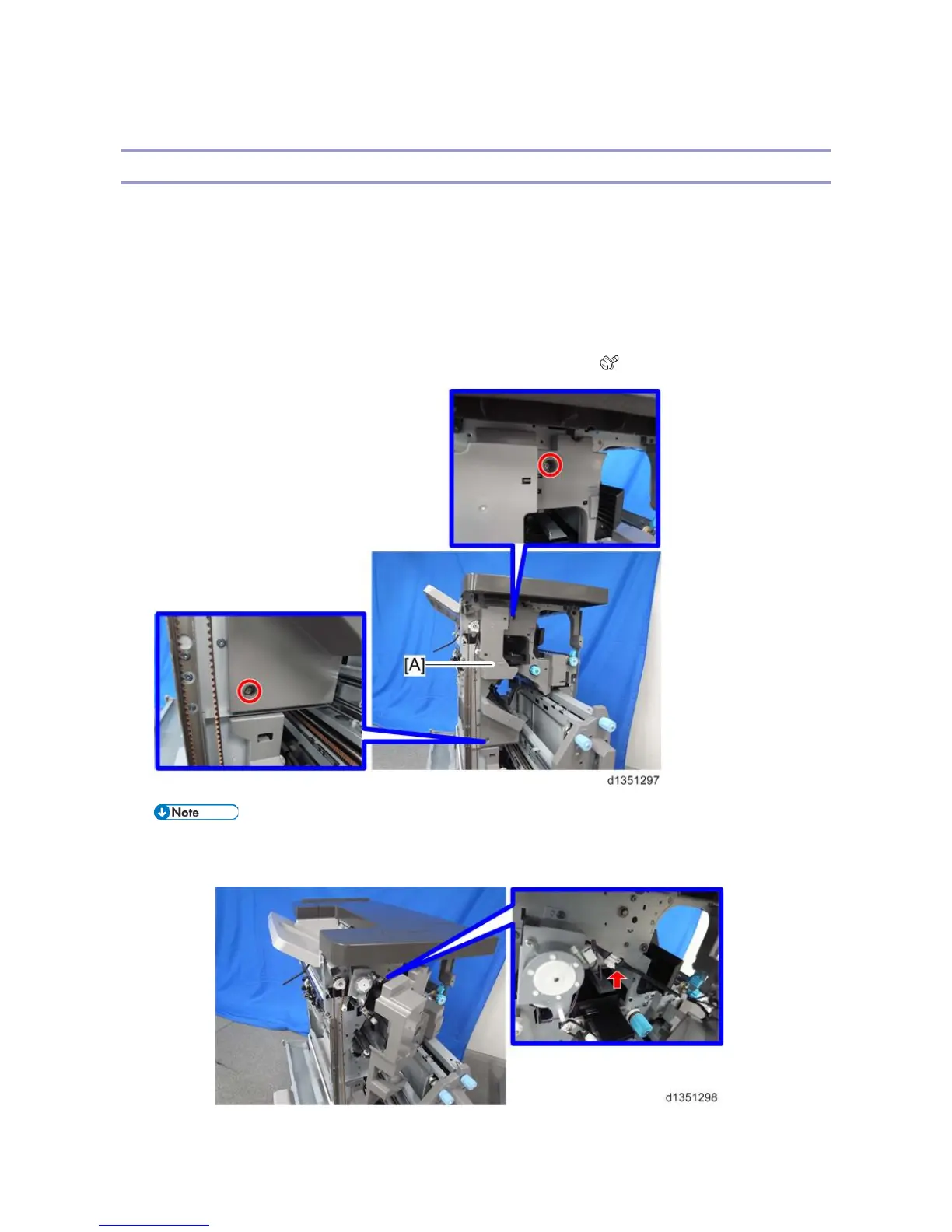

2. Pull out the booklet stapler unit, and remove the inner upper cover [A]. ( x 2)
• Disconnect the harness from the back side of the inner upper cover when you remove the inner
upper cover.
