1.Replacement and Adjustment
18

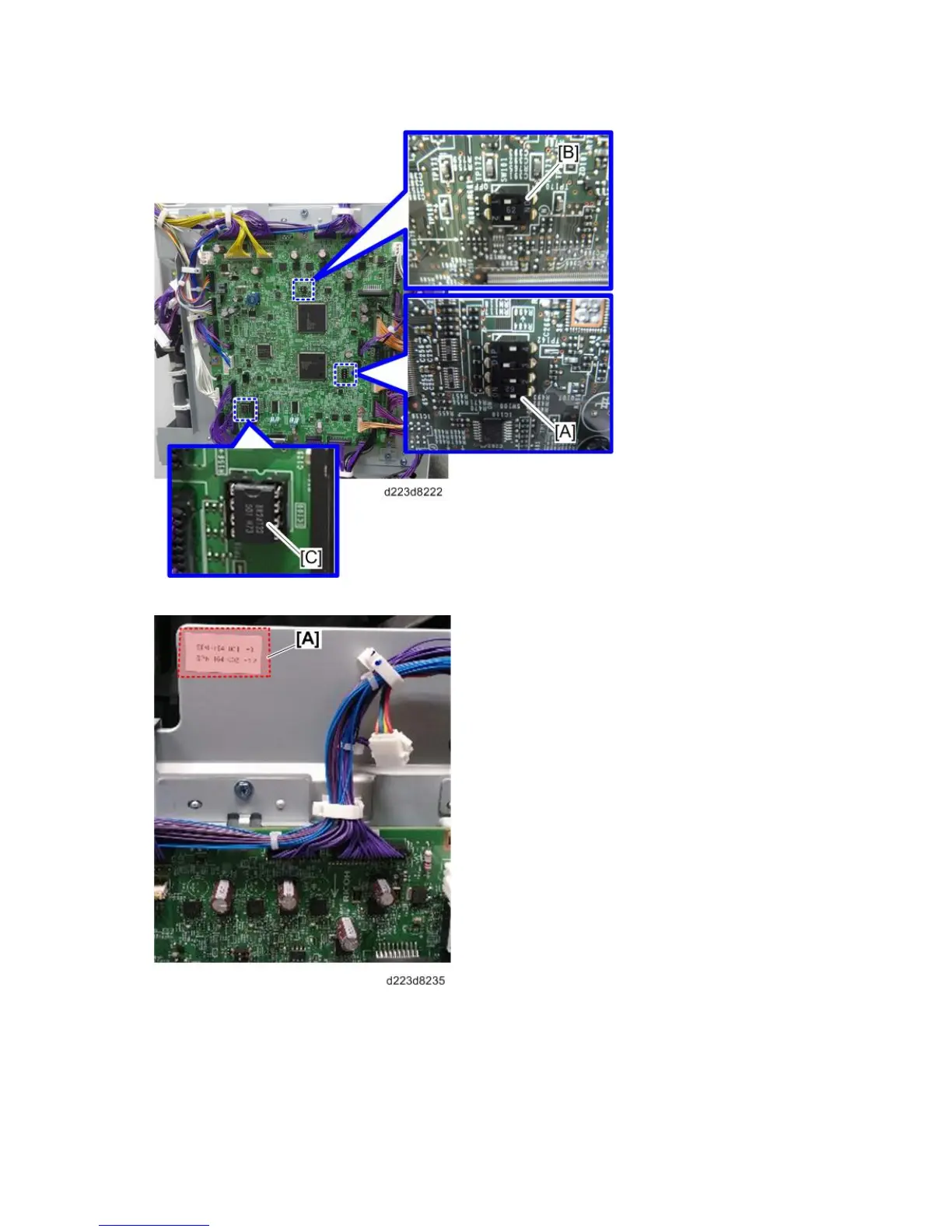

5. When replacing the control board, remove EEPROM [C] from the old board and install it on the new board.
6. Locate the seal [A] attached near the right corner of the board.
7. Go into the SP mode, open these SP codes, and then enter the numbers you see on the seal.
• SP6121-001 NV Adj. Data: Jog Position: Factory Adj.
• SP6121-002 NV Adj. Data: Fold Position: Factory Adj.
