1.Replacement and Adjustment
60
Paper Guide Unit Sensor

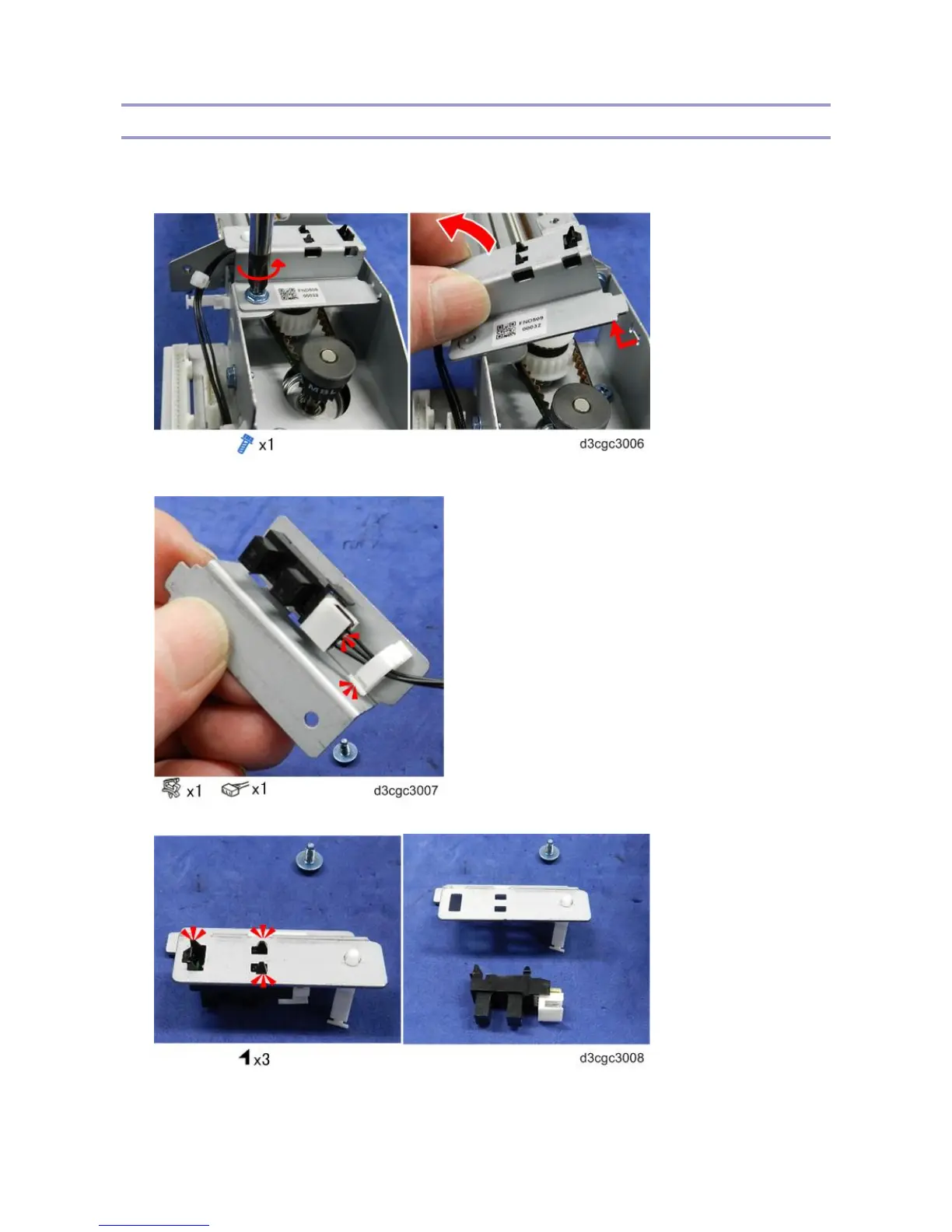

1. Remove the paper guide unit. Paper Guide Unit
2. Disconnect the sensor bracket.
3. Disconnect the sensor.
4. Separate the sensor and bracket.
