Ricoh SR4120 - Paper Guide Motor

1.Replacement and Adjustment
27

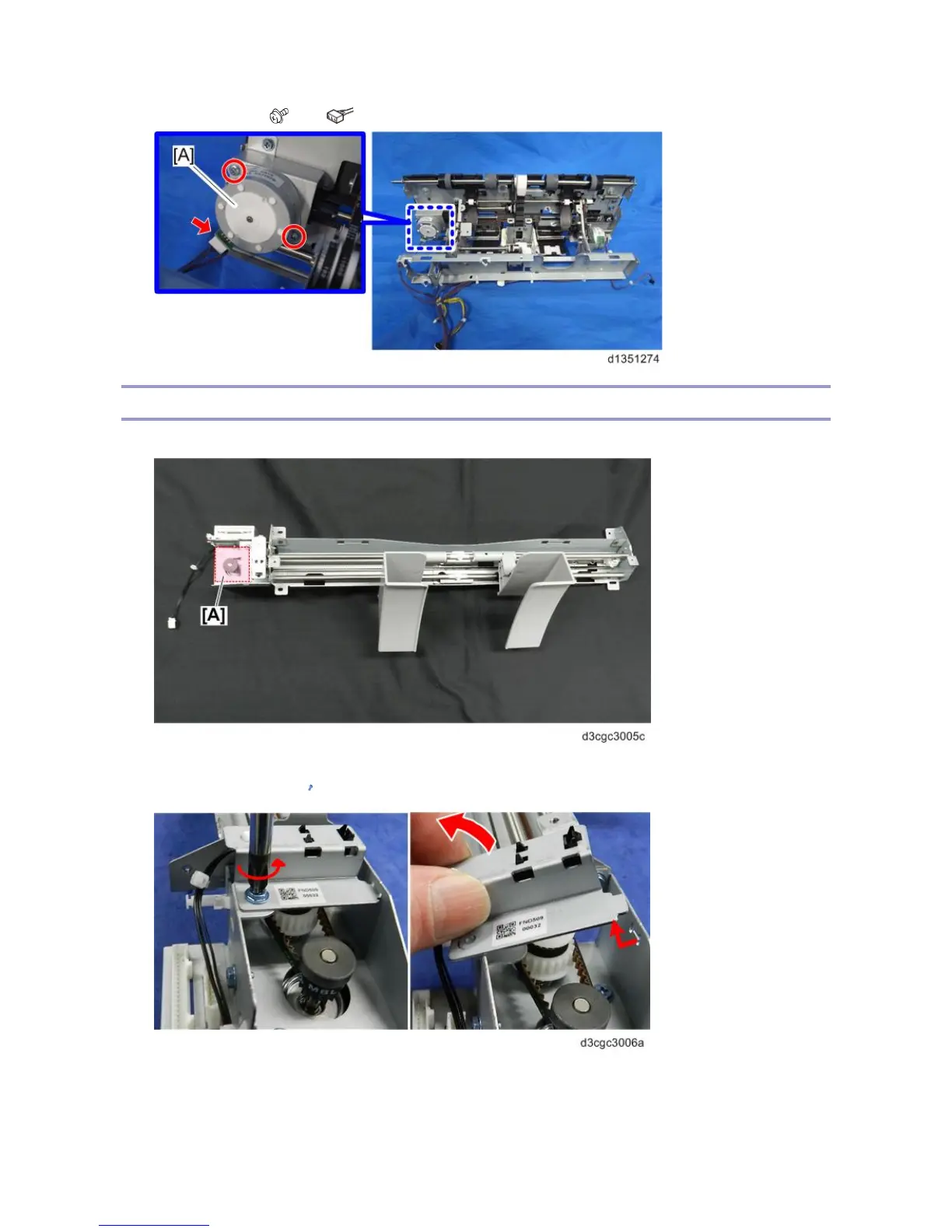

4. Jogger motor [A] ( x 2, x 1)
Paper Guide Motor
1. The paper guide motor is at [A].
2. Remove the paper guide unit. Paper Guide Unit
3. Remove sensor bracket ( x1).
