1.Replacement and Adjustment
35
Booklet Unit Motors
Booklet Stapler Unit
1. Remove the following covers. Rear Upper Cover, Rear Lower Cover, Upper Cover
• Rear Upper Cover
• Rear Lower Cover

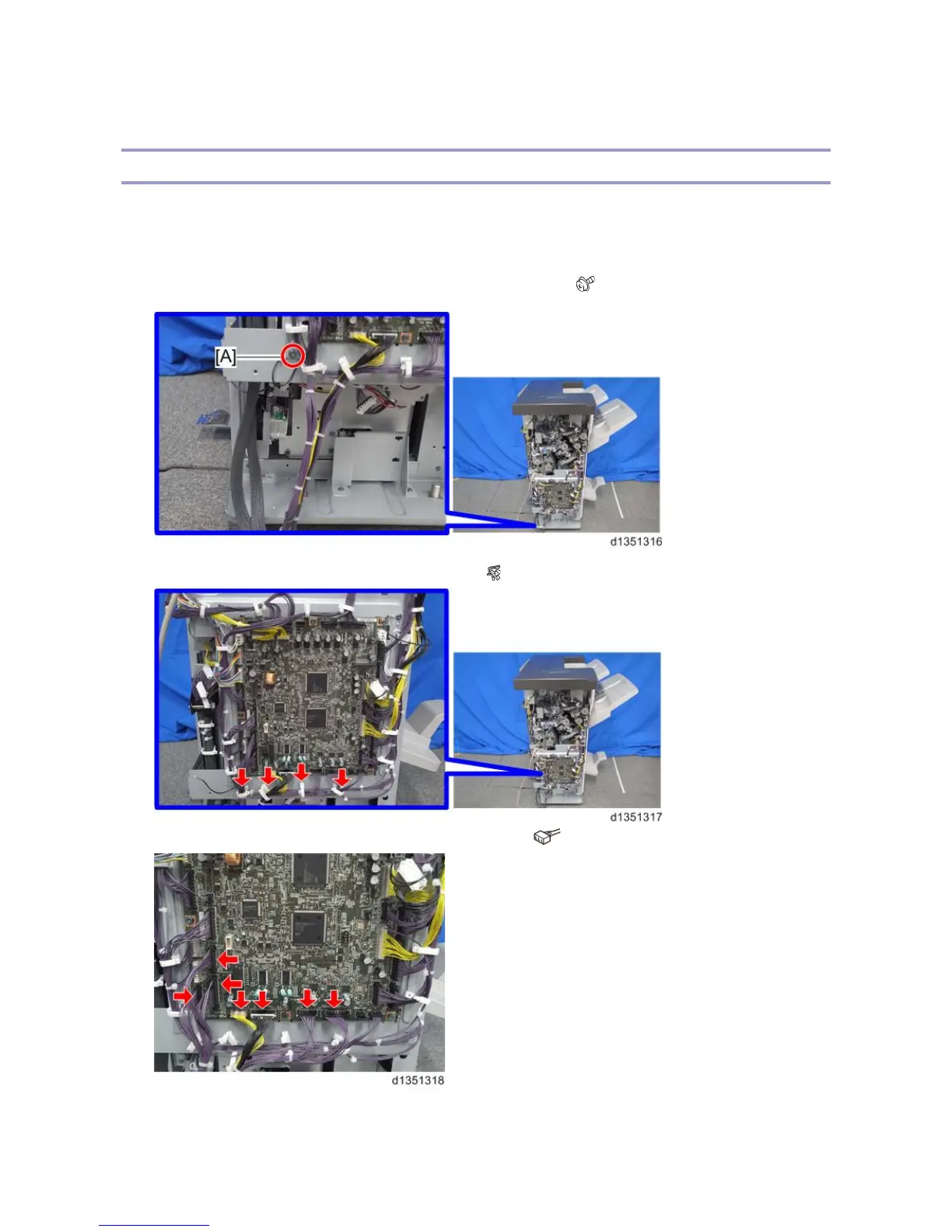

2. Remove the ground wire [A] in the left lower side of the main unit. ( x 1)
3. Release the harness from the 4 clamps shown below. ( x 4)
4. Disconnect the following 7 connectors from the main board. ( x 7)
