1.Replacement and Adjustment
3
1. Replacement and Adjustment
Covers

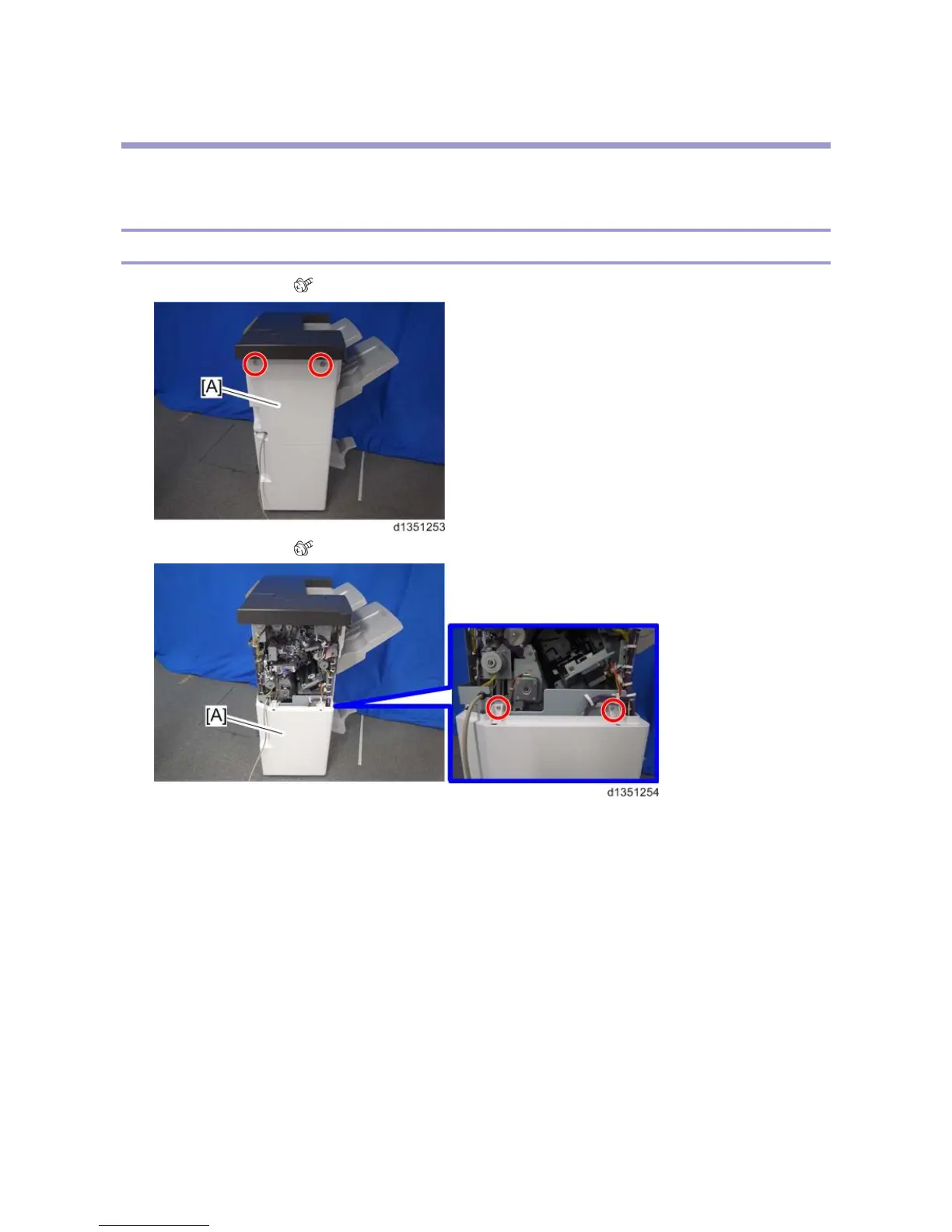

Rear Upper Cover, Rear Lower Cover, Upper Cover
1. Rear upper cover [A] ( x 2)
2. Rear lower cover [A] ( x 2)
