1.Replacement and Adjustment
4

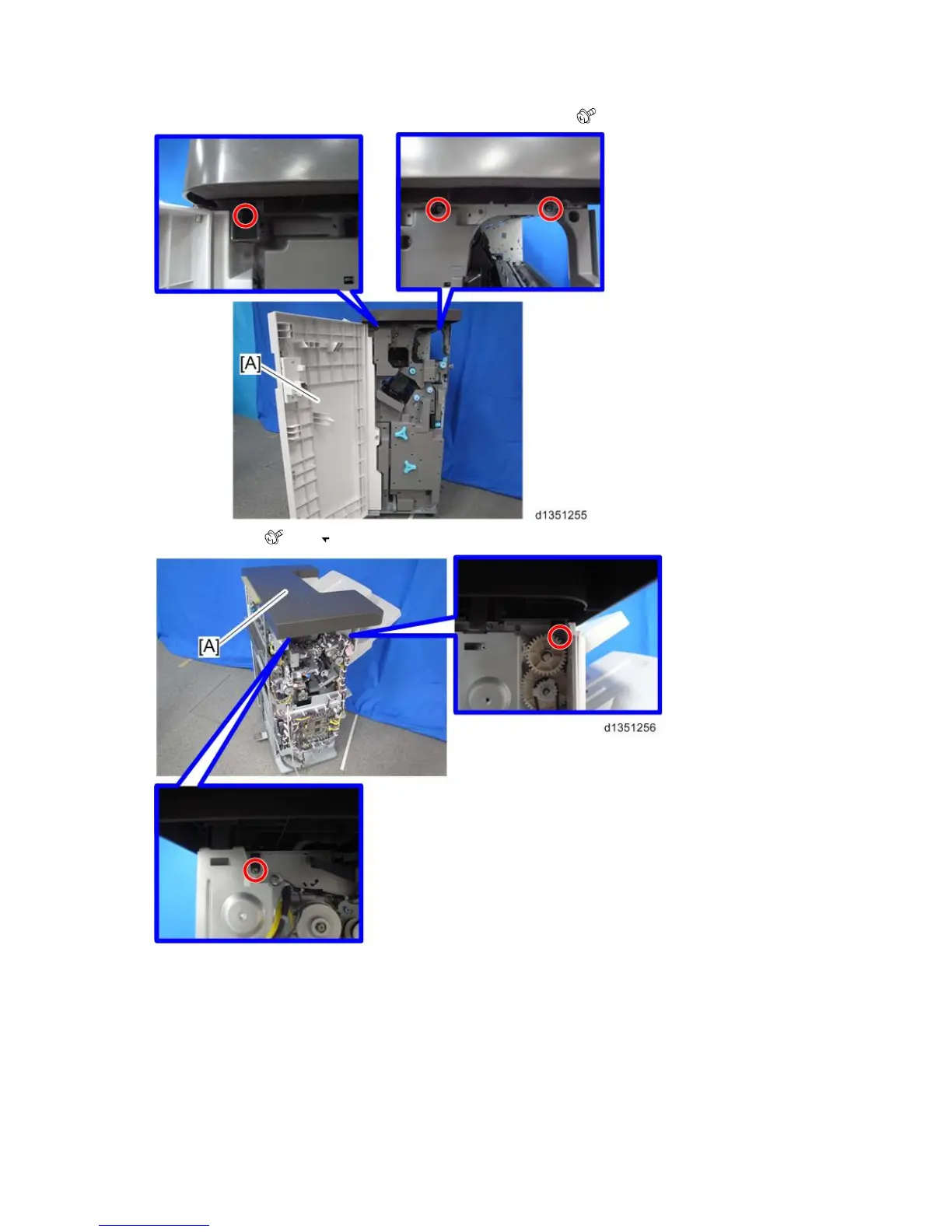

3. Open the front door [A], and remove the screws of the upper cover. ( x 5)
4. Upper cover [A] ( x 2, x 2)
