2.Detailed Descriptions
82
Output is performed by the exit roller as described in the output operation described above.
2. Roller exit: A4, LT, B5 LEF
Only the exit roller is used to perform output without using the mobile fence and output pawls.
Large Sizes (A3, B4, LG, DLT)
1 to 10 documents: Roller output method
More than 11 documents: Pawl, roller output method
Saddle Stapling (Booklet Stapling)

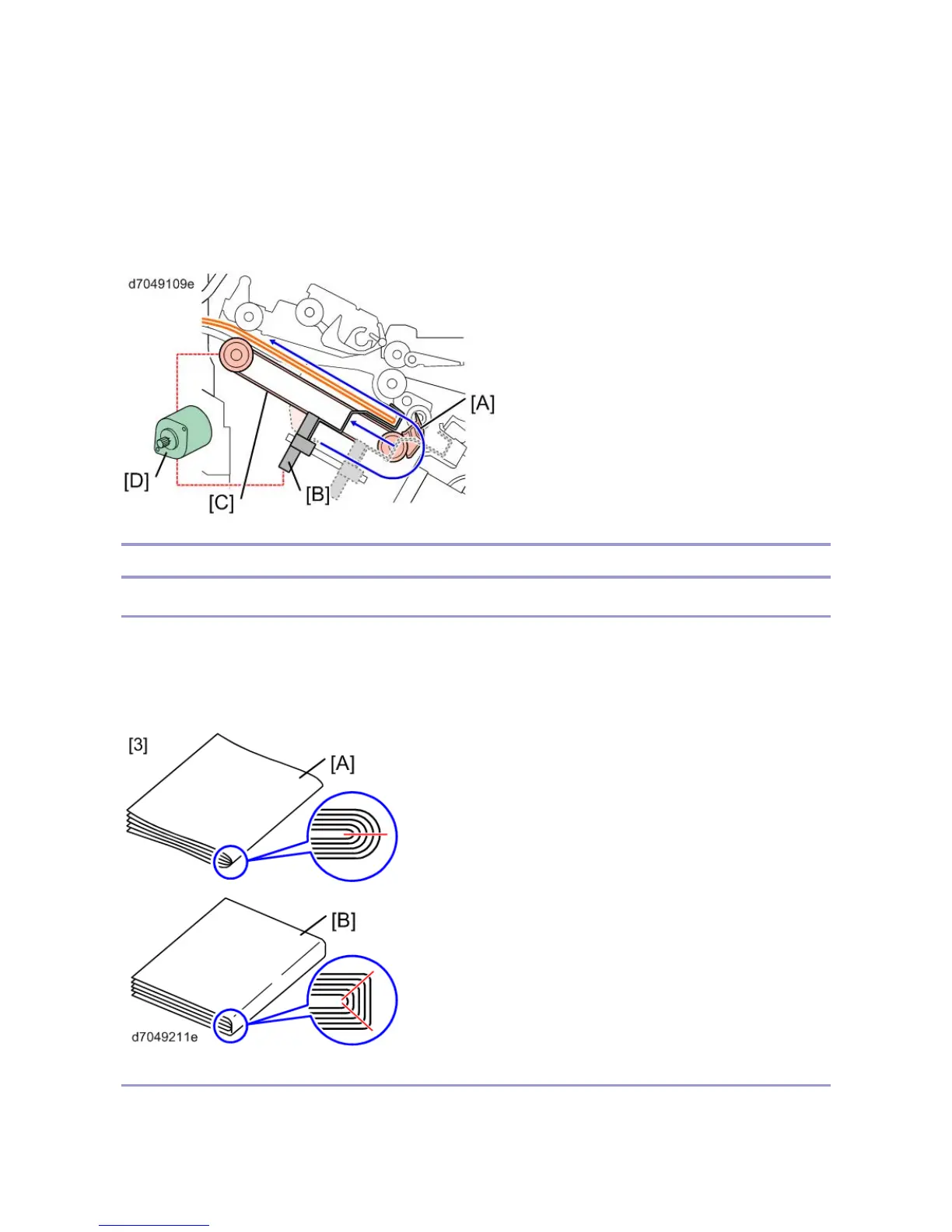

What is Saddle Stapling?
Compared to normal center stapling, center stapling with this finisher can reduce the bulge at the center of the
booklet.
[A] Common saddle stapling
[B] Saddle stapling with this finisher
Saddle Stapling with This Finisher
Until now very heavy pressure needed to be applied in order to shape the saddle, and this could not be done unless
