the finisher was very large. This finisher, however, in spite of being very small, uses the device described below to
achieve a better saddle shape.

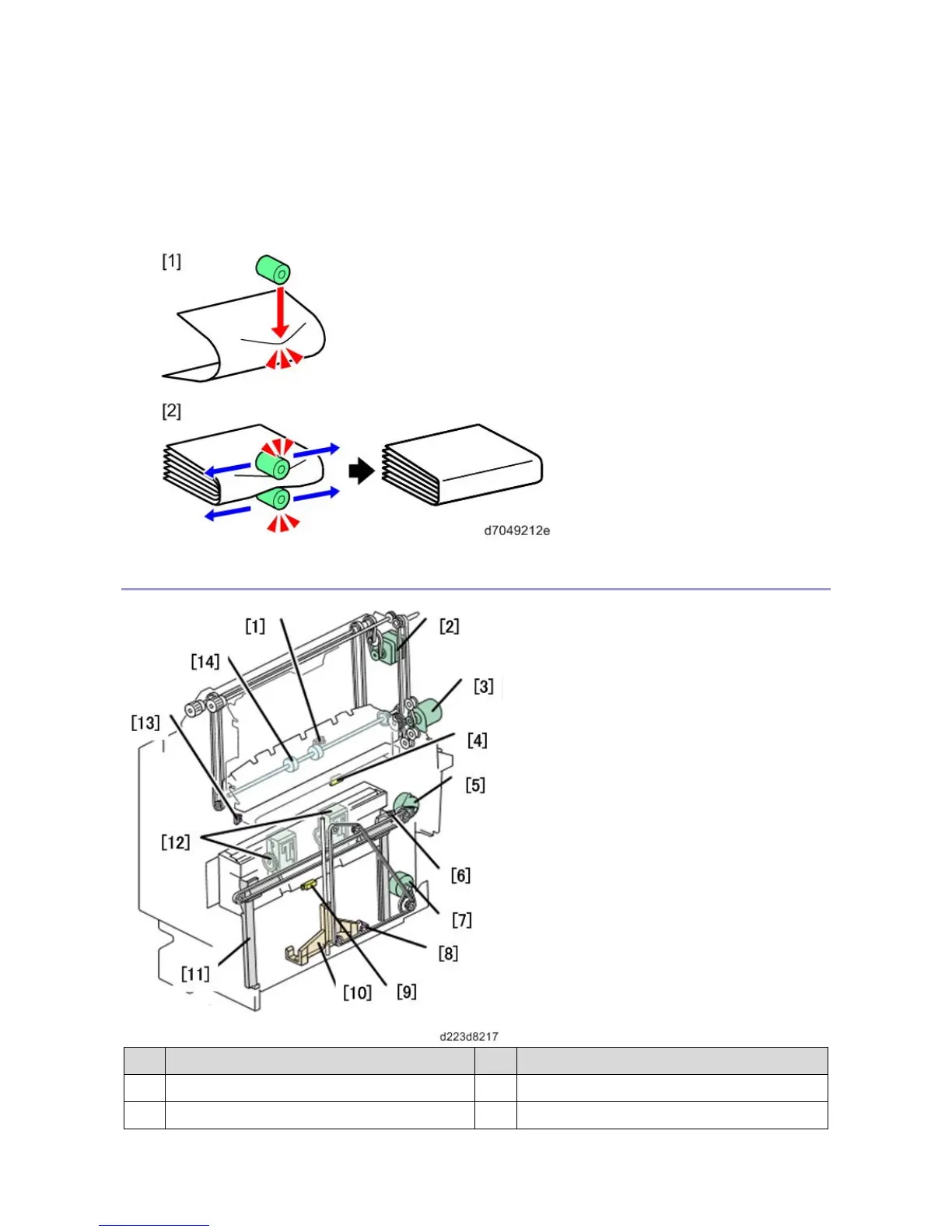

• Pressure is applied to the fold with a roller to form the saddle.
• Pressure is applied while the paper is buckled at the top and bottom with two rollers to form the saddle. The
rollers move front and back to strengthen the crease with two, not just one fold.
Components
No. Name No. Name
1 Stack Junction Gate HP Sensor 8 Bottom Fence HP Sensor
2 Shift Roller Lift Motor 9 Booklet Lower Transport Path Paper Sensor
