2.Detailed Descriptions
72
pre-stack position.

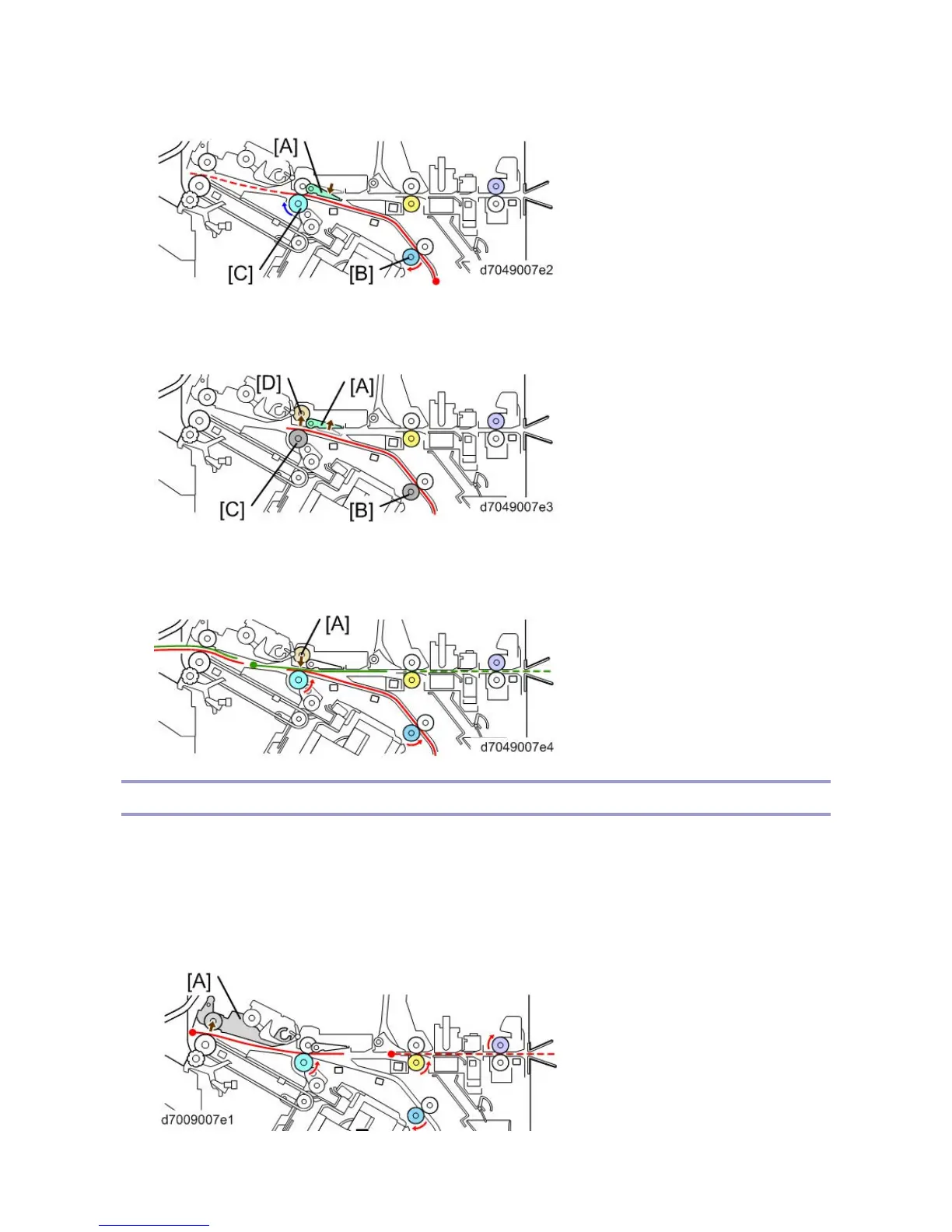

3. The rotation of the relay transport roller [C] and the pre-stack roller [B] stops, and the pre-stack junction gate
[A] shifts up (open). The shift roller [D] also shifts up to release the pressure between itself [D] and the relay
transport roller [C].
4. The following sheet of paper comes through the entrance and reaches the relay transport path. After that, the
shift roller [A] drops in order to press the pre-stacked sheet and the following sheet. Then the two sheets go
to the next process (corner stapling).
Pre-stack Operation (Booklet Stapling)
• Pre-stack Capacity: 2 sheet
• Pre-stack Size: All Sizes
There are five steps as follows:
1. The upper tray exit guide plate [A] shifts up (open). Paper comes through the entrance transport and reaches
the relay transport path.
