1.Replacement and Adjustment
10

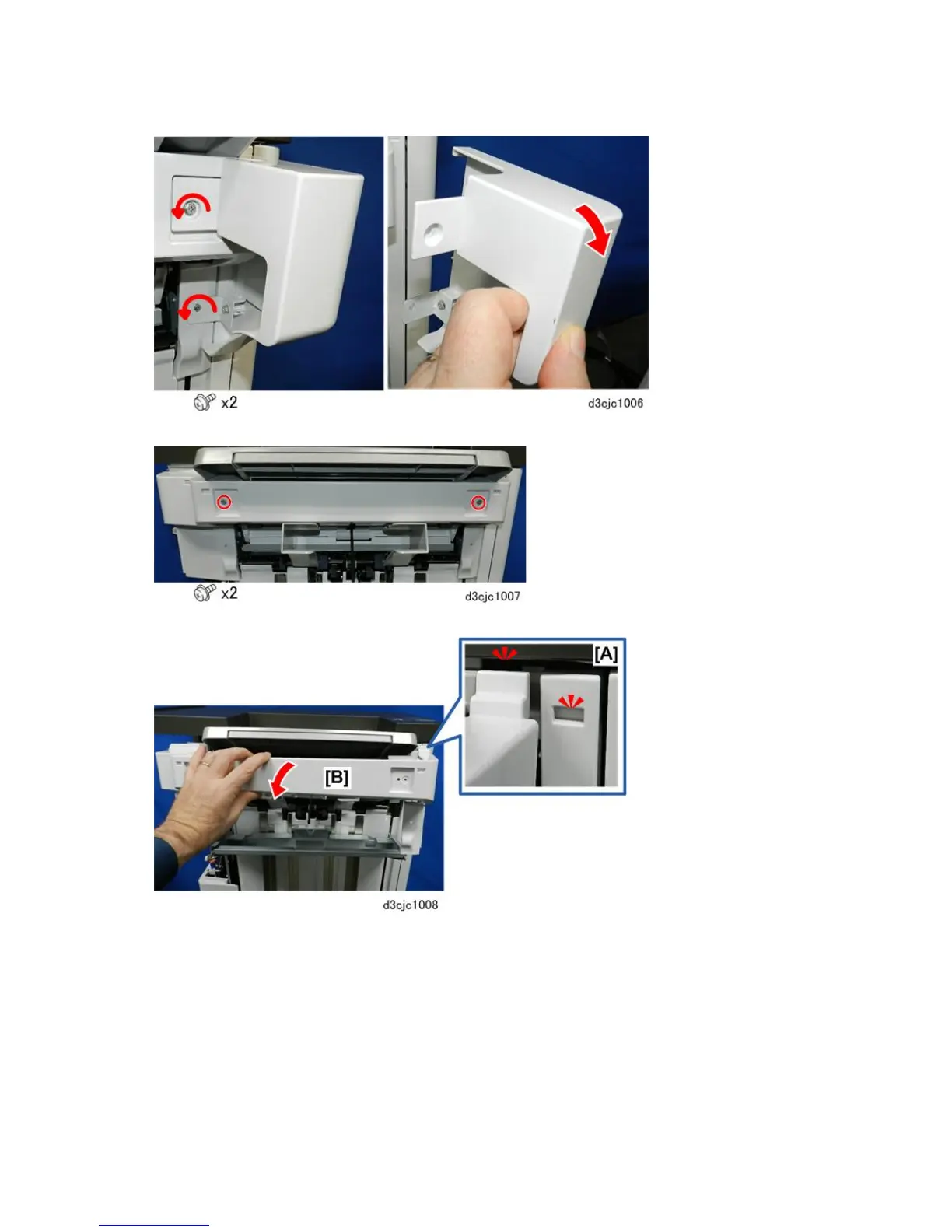

6. Remove the front paper guide cover.
7. Disconnect the main paper guide cover.
8. Carefully, separate the front tabs at [A], and then remove the main paper guide cover [B].
