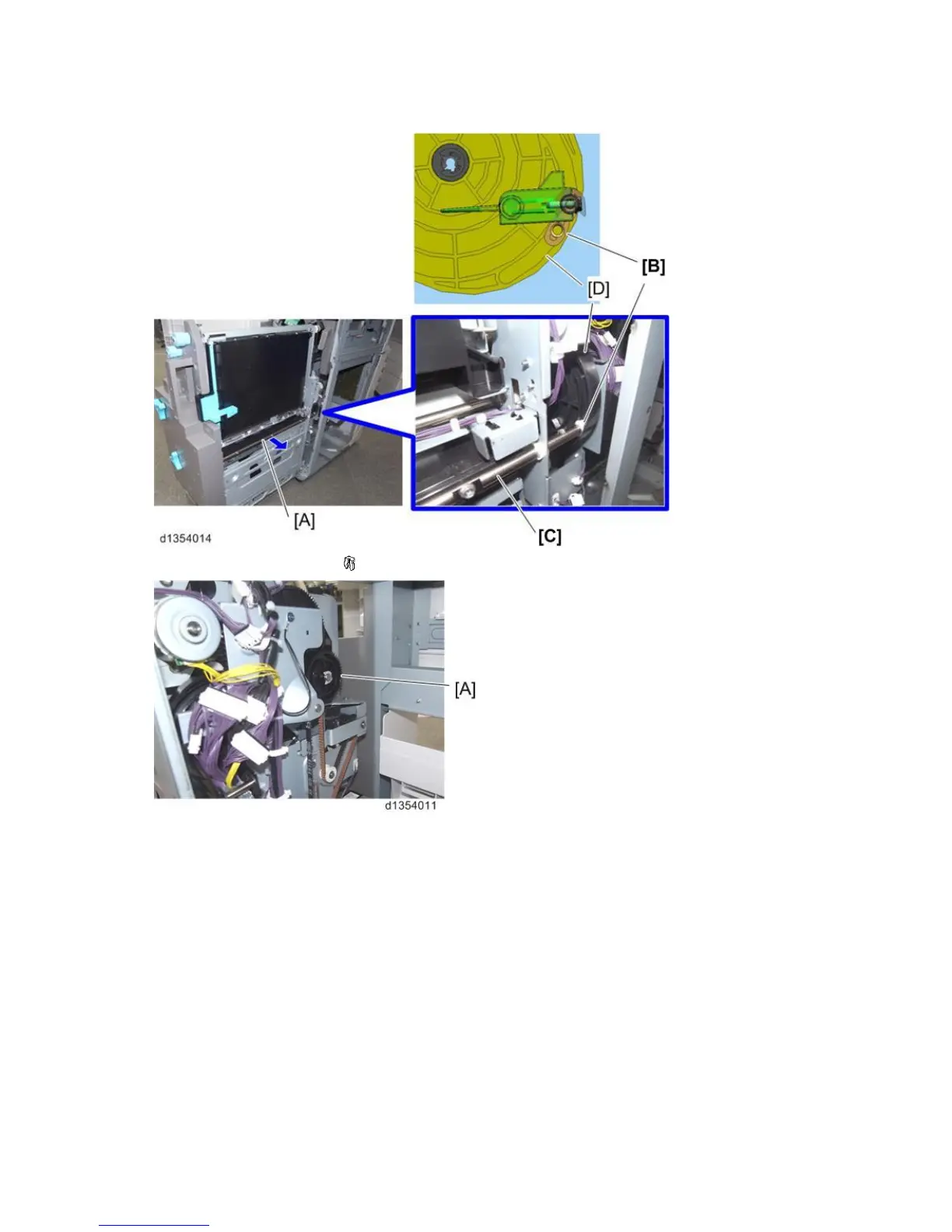

[B] on the rear end of the fold plate shaft [C] is aligned with the fold plate positioning cam [D].
6. Re-attach the timing gear [A] ( x 1)
7. Reassemble the finisher and connect it to the copier.
8. Turn on the copier.
9. After the finisher initialization is complete, check that the flat fold roller unit, fold plate and the cam are
positioned as described in steps 4 and 5.
