2.Detailed Descriptions
76
Operation

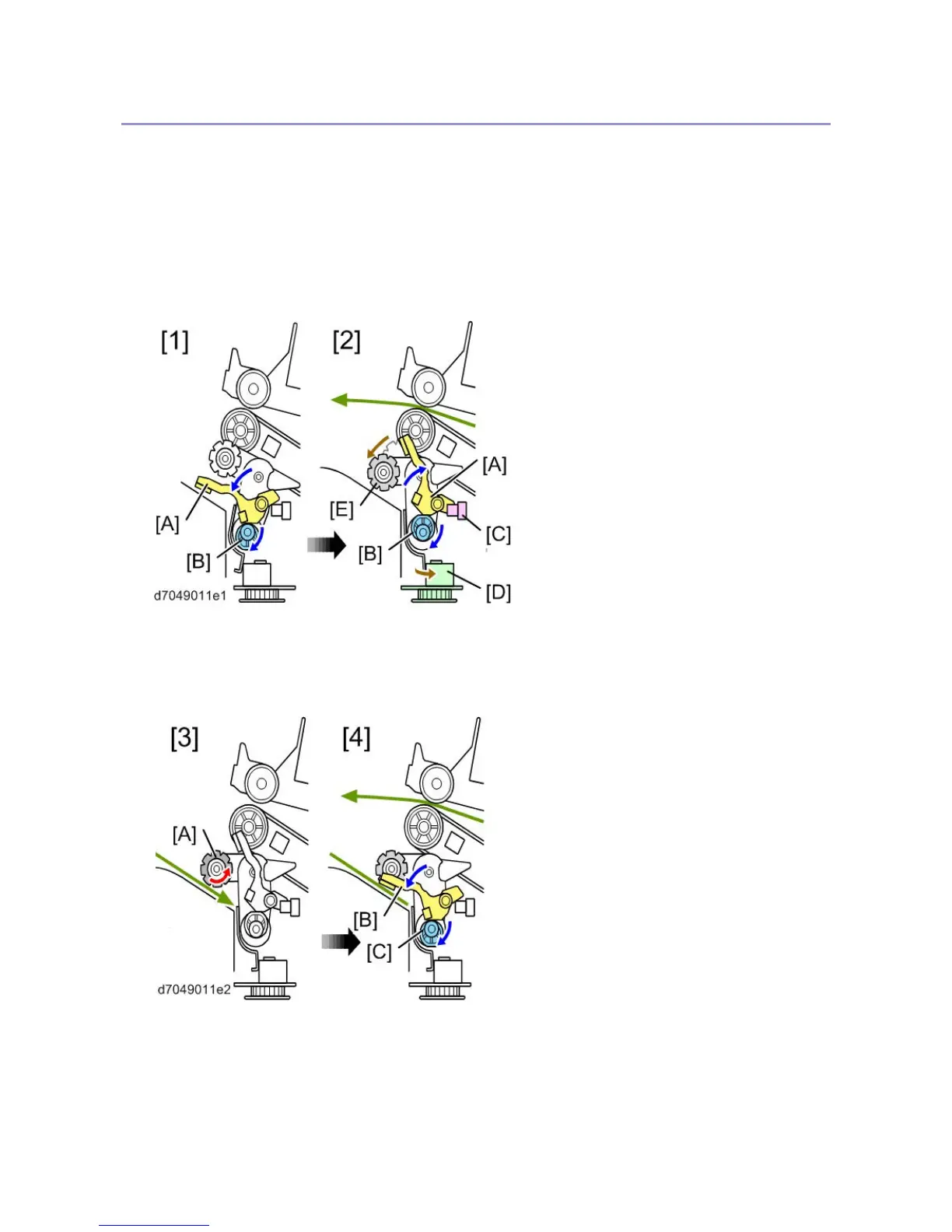

There are five steps in the operation:
1. When a job starts, the paper stacking holder motor rotates the paper stacking holder cam [B] to shift the
paper stacking holder [A] down.
2. The stacking sponge roller fluctuation motor rotates the stacking sponge roller cam [D] to move the stacking
sponge roller [E] down. The paper stacking holder motor rotates the paper stacking holder cam [B] to lift the
paper stacking holder [A] up to its HP (until the paper stacking holder interrupts the paper stacking holder HP
sensor [C]).
3. The paper stacking holder motor drives in reverse to let the stacking sponge roller [A] pull the output paper
in.
4. The paper stacking holder motor rotates the paper stacking holder cam [C] to drop the paper stacking holder
[B] down (until the end of the job, the machine repeats step 3 and step 4).
5. After a job end, the stacking sponge fluctuation motor rotates the stacking sponge roller cam [D] to lift the
stacking sponge roller [A] up to its HP position. At the same time, the paper stacking holder motor rotates the
holder cam [E] to lift the paper stacking holder [B] up to its HP (until the paper stacking holder HP sensor
