Chapter 11 Protocol Decoding RIGOL
MSO5000 User Guide 11-35
⚫ Event table
Press Event Table to enter the event table setting menu. The event table
displays the detailed decoding information in time order in the form of a
table, so as to better observe the long decoded data. The decoding
information includes the decoded data, the corresponding line number, time,
frame ID, and Payload Length (PL).
➢ Open or close the event table: Press Event Table continuously to
enable or disable the event table. When you enable the event table,
the following figure is displayed, as shown in Figure 11-13. You can
also enable the touch screen to tap the icon at the upper-right
corner of the table to close the event table. Besides, when the
operating status is "STOP", you can also rotate the multifunction knob
to select a specified line and view the corresponding decoding
information.

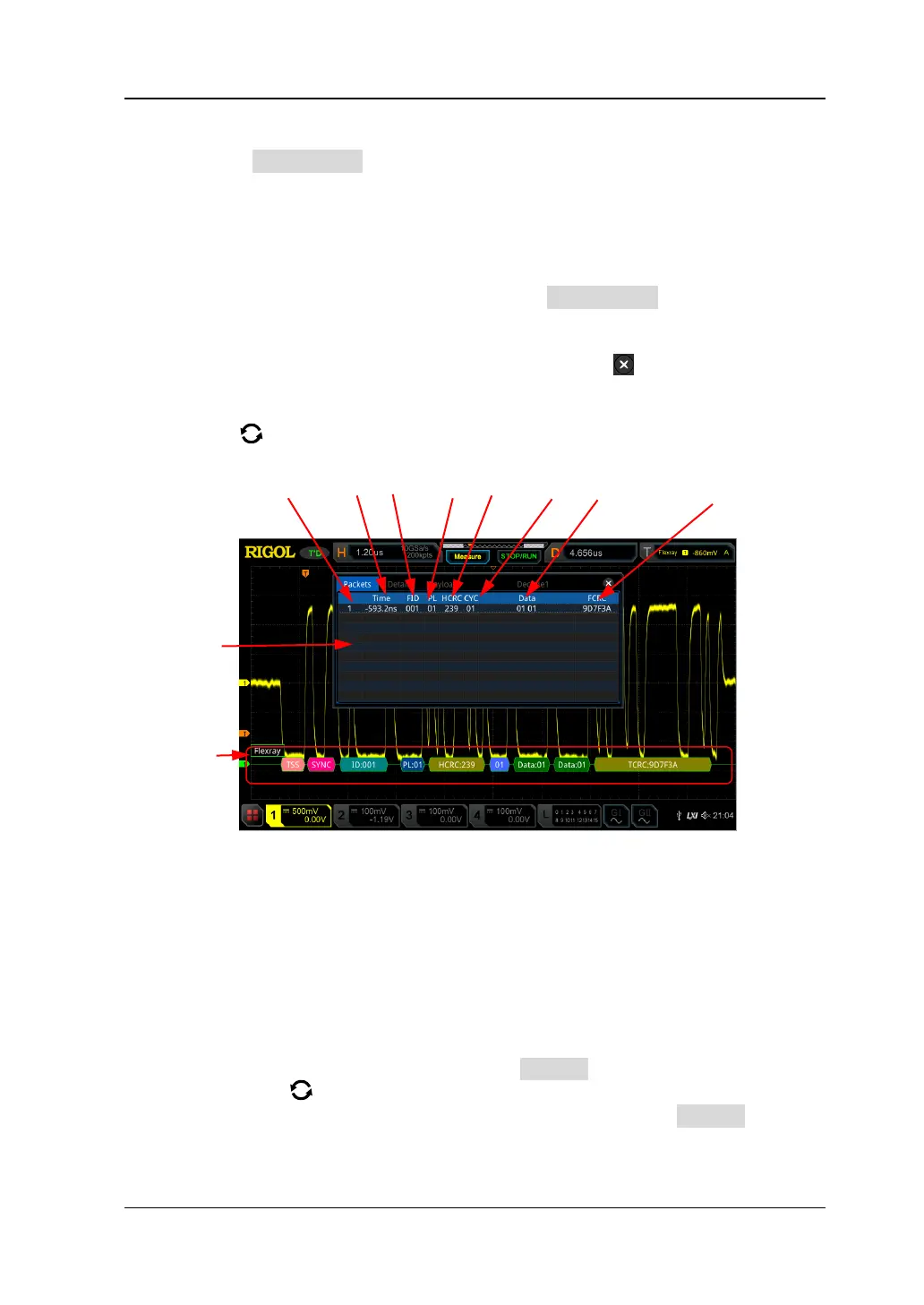

Figure 11-13 FlexRay Decoding Event Table
Note:
⚫ When you adjust the horizontal time base, the waveform displayed
on the screen will also change, and the total number of lines
containing the decoding information in the event table will also be
changed.
⚫ The displayed decoded data information in the bus is related to the
value of the horizontal time base. Reducing the horizontal time
base can help you view the detailed information.
➢ Set the event table format: Press Format, rotate the multifunction
knob to select the display format of "Data" in the event table. Then,
press down the knob to select it. You can also press Format
continuously or enable the touch screen to select it. The available
formats include "Hex", "Dec", "Bin", and "ASC".
Line Number Time Frame ID PL Header CRC Cycle Decoded Data Frame CRC
Event Table
FlexRay Bus

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
