Rigol MSO5104 User Manual

RIGOL Chapter 1 Quick Start
1-6 MSO5000 User Guide

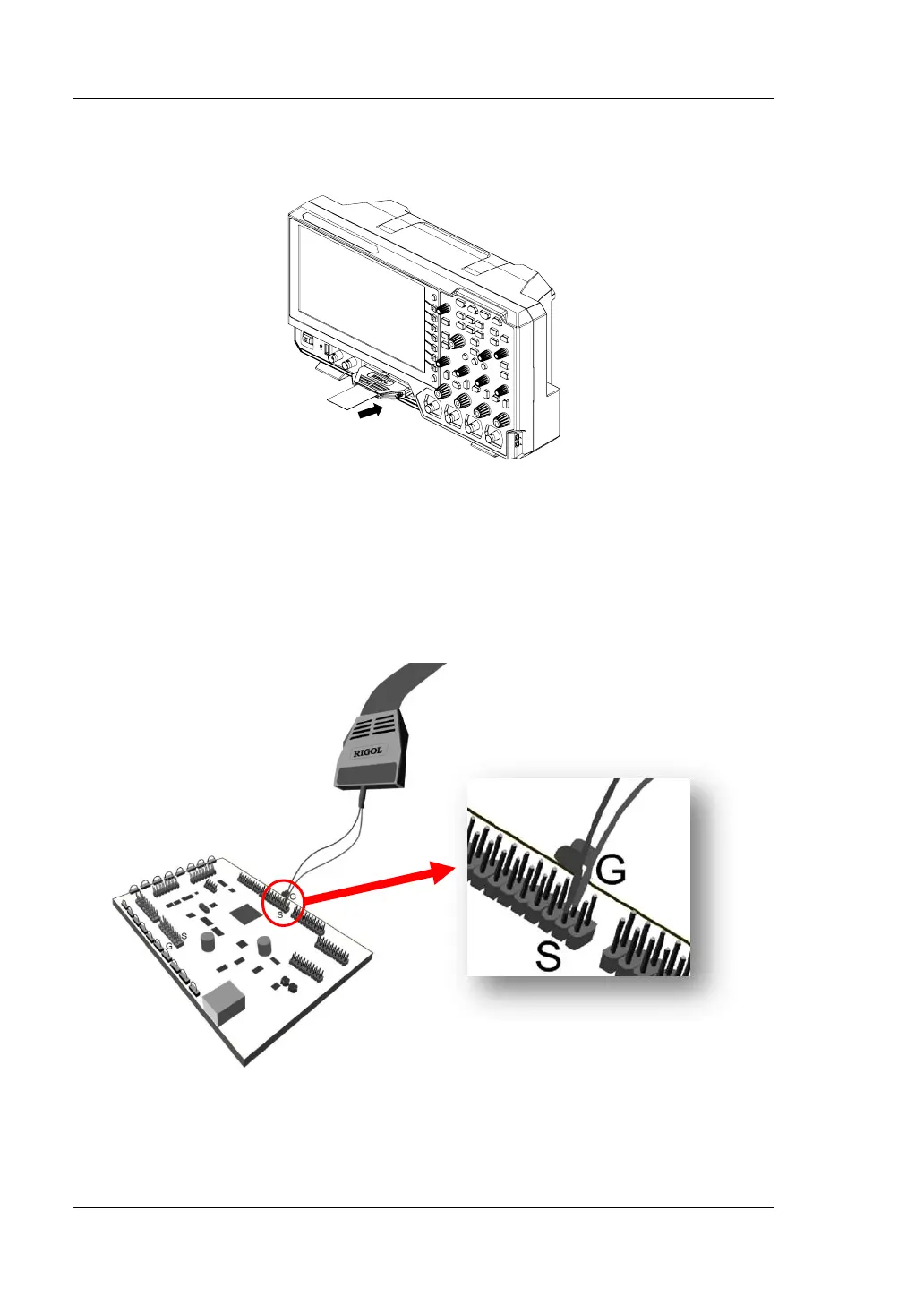

2. Connect the output terminal of the logic probe to the digital channel input
terminal on the front panel of the oscilloscope in the correct direction, as shown
in Figure 1-6.
Figure 1-6 To Connect the Logic Probe
3. Connect the signal lead of each probe at the input terminal of the logical probe to
the test point of the signal under test.
4. Connect the ground lead of each probe at the input terminal of the logical probe
to the ground test point near the signal under test, as shown in Figure 1-7 (a).
Figure 1-7 (b) shows the incorrect connection of the ground lead, which fails to
connect the ground lead to the ground test point near the measured signal.
(a) Correct Connection of the Ground Lead

Rigol MSO5104 Specifications

General

Type	Tabletop
Product type	-
Bandwidth	100 MHz
Sampling rate	500000 MS/s
Channels quantity	16 channels
Minimum time base setting (per division)	3.5 ns
Display type	LCD
Display diagonal	9 \
AC input voltage	100 - 240 V
AC input frequency	45 - 440 Hz
Power consumption (max)	75 W
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Width	367 mm
