3.2. DESCRIPTION OF OPERATING CYCLE AND WRAPPING MODES

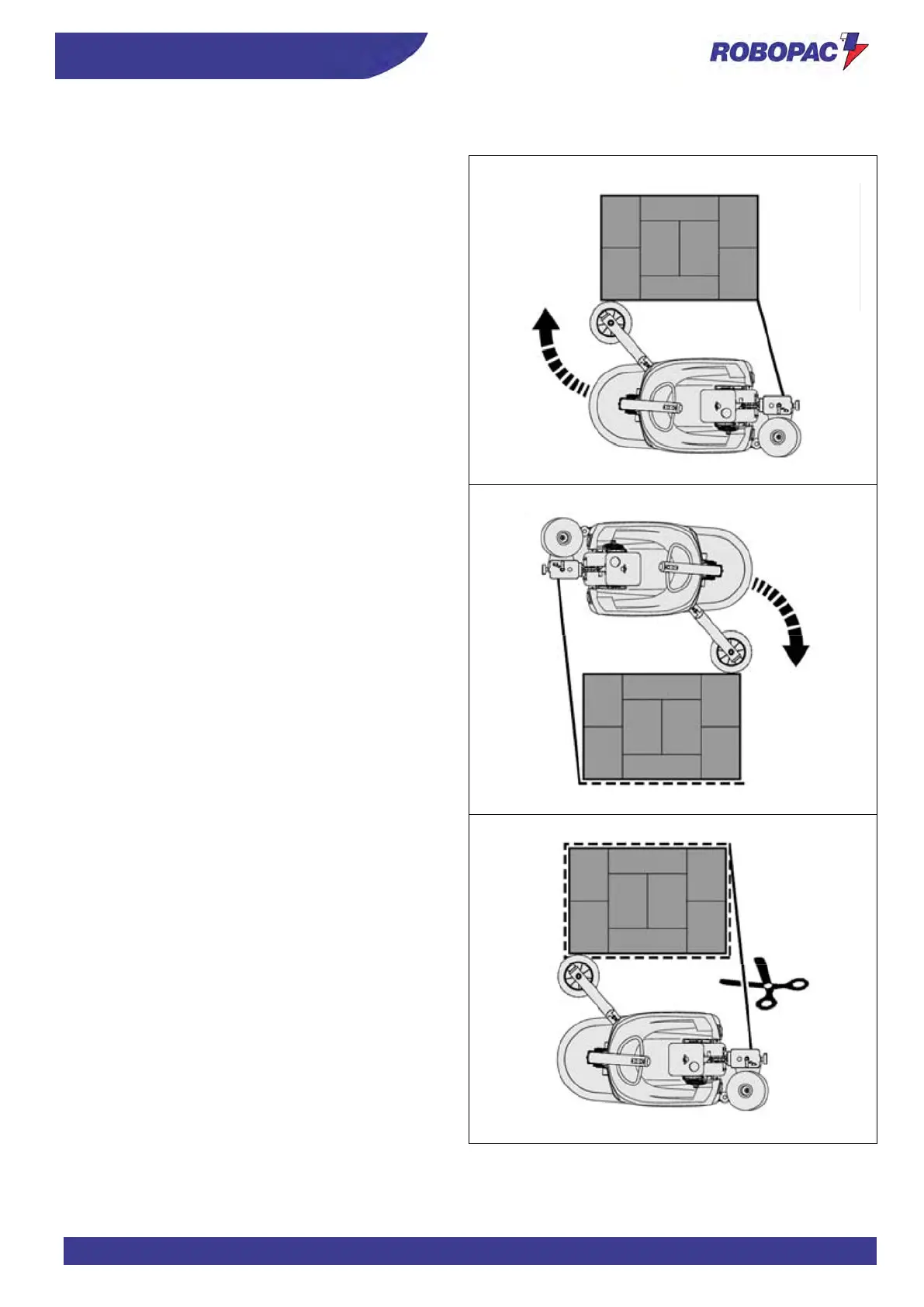

3.2.1. DESCRIPTION OF THE OPERATION CYCLE
Phase 1
The Operator approaches the machine until the feeler
wheel is in contact with the pallet, then ties the end of the
film to the pallet and starts the wrapping cycle.
Phase 2
The machine turns clockwise around the pallet, while the
spool carriage lifts and unwinds the film according to the
set parameters.
Phase 3
Upon completion of the wrapping phase, the machine
stops.
After cutting the film (manually or automatically) the
machine can be set to wrap the following pallet.
