INFORMATION ON ADJUSTMENTS
44
5. INFORMATION ON ADJUSTMENTS
5.1. RECOMMENDATIONS FOR ADJUSTMENTS
- Before performing any operation, the authorised operator must make sure to have understood the “Instructions
for use”.
- Activate all the safety devices provided, stop the machine and assess whether there is any residual energy
before carrying out the operations.
- Provide suitable safety conditions in compliance with the regulations on workplace safety to prevent and
minimise the risks.
- Pay attention to the safety warnings, do not misuse the machine and assess the possible residual risks.
5.2. “FILM STRETCH” ADJUSTMENT

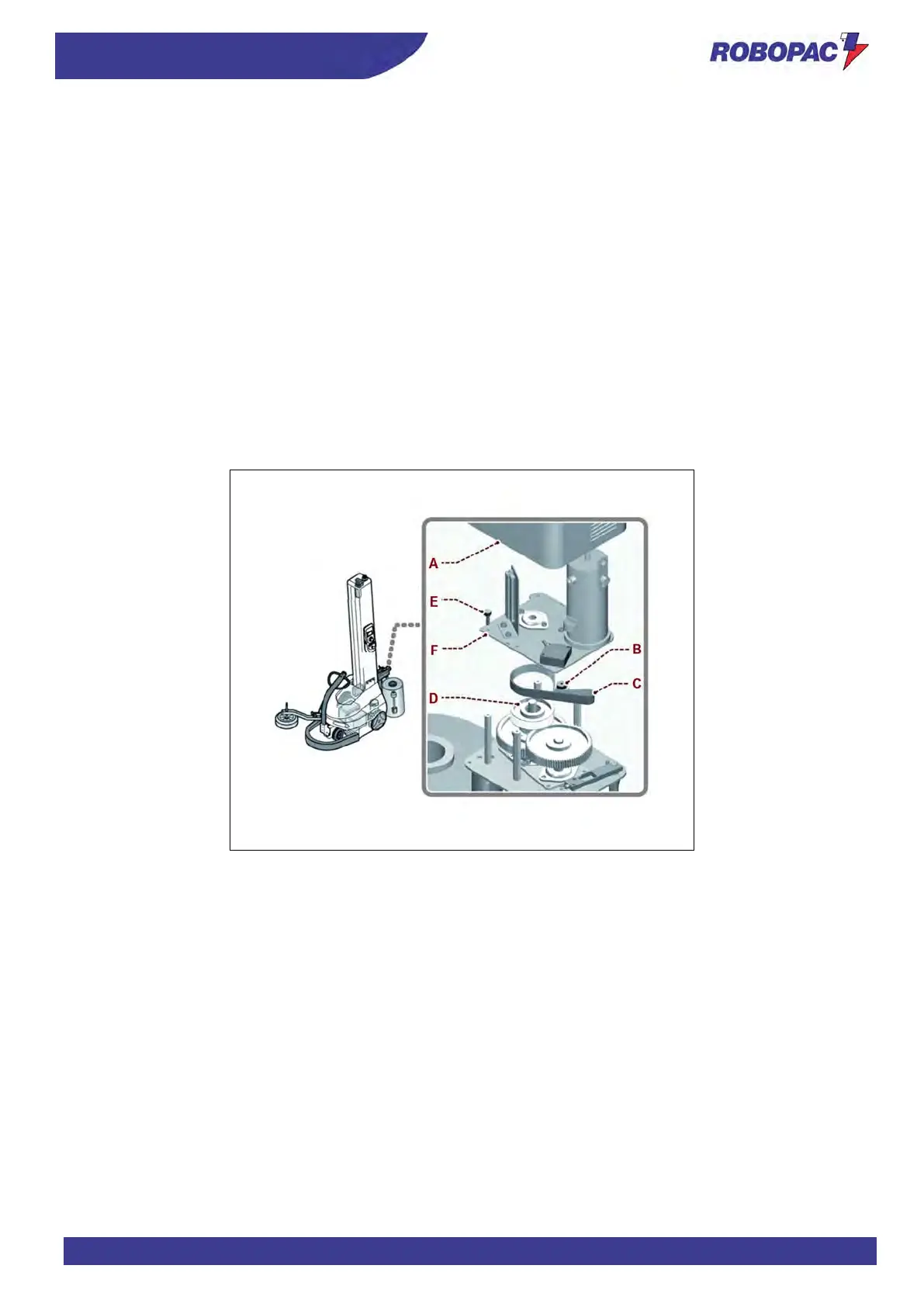

5.2.1. "PDS" SPOOL CARRIAGES FOR CHANGING THE PRE-STRETCH RATIOS
1. Stop the machine in safety conditions (see paragraph “Machine safe stop”).
2. Remove the guard (A).
3. Slacken the belt (C) using the tensioner (B).
4. Slide the belt out of the pulley (D).
5. Loosen the screws (E).
6. Remove the plate (F) with motor and bearings.
