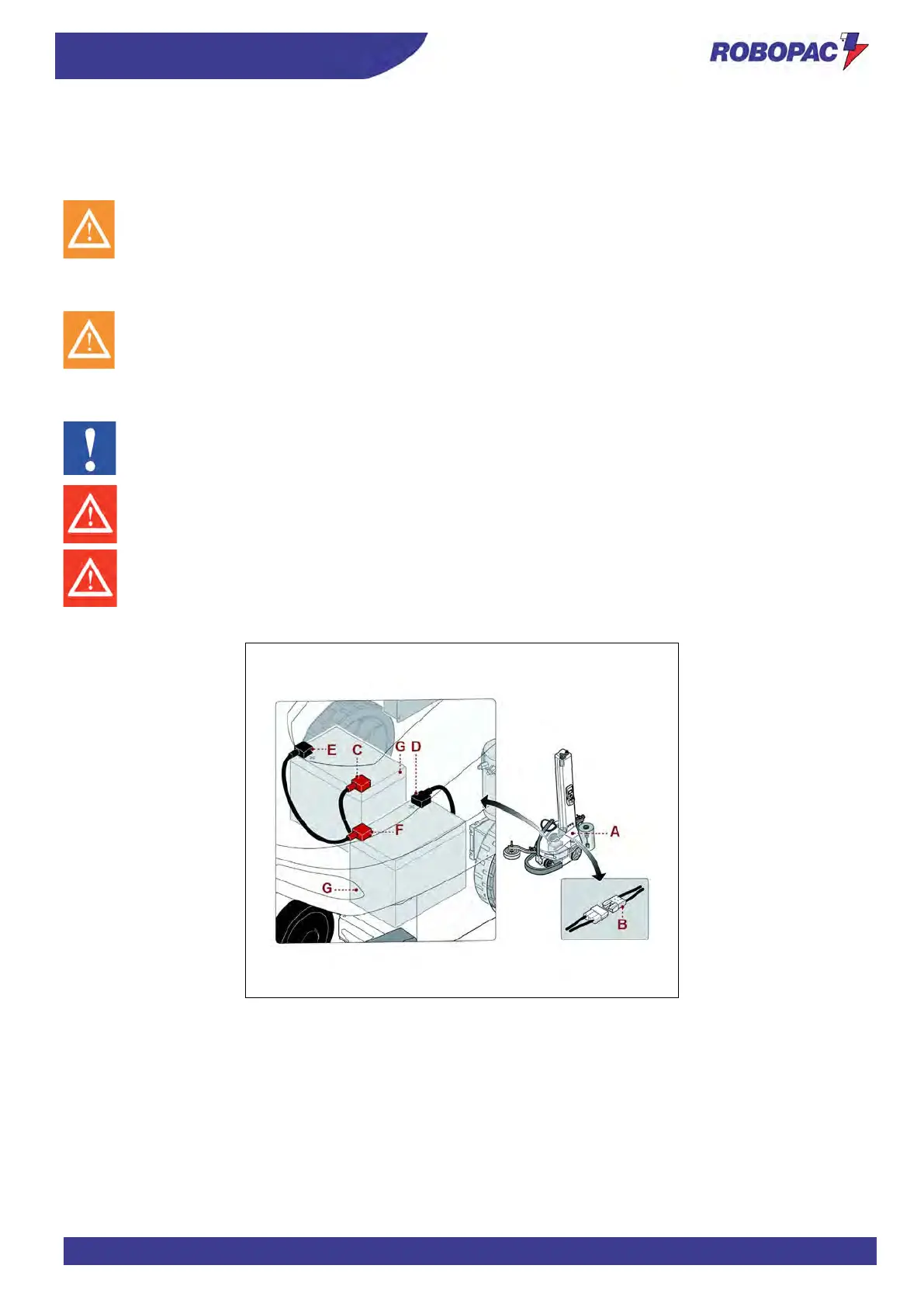

9.2. BATTERY REPLACEMENT
1. Lift the battery cover (A).
2. Remove the connector (B) from the socket.
3. Disconnect the terminals (C-D-E-F).
First disconnect the negative terminal (
).
4. Remove and replace the batteries (G).
5. Connect again the terminals (C-D-E-F).
When connecting the terminals, ensure the polarity is respected.
Cover with grease the positive terminal (✚) and connect it first.
6. Plug the connector (B) to the socket.
7. Close the battery cover (A).
Do not dispose of used batteries in the environment.
Dispose of the same in compliance with the applicable current regulations (See documentation enclosed).
Caution: heavy batteries.
The removal operation should be carried out by two people or by using suitable lifting means.
Caution: risk of hand crushing during the removal and feet crushing in case of falling to the ground.
Wear suitable PPE (gloves and protective shoes).
