Robopac ROBOT MASTER - INSTALLATION OF DISASSEMBLED PARTS

39
INFORMATION ON HANDLING AND INSTALLATION
ENG
4.4. INSTALLATION OF DISASSEMBLED PARTS
4.4.1. INSTALLATION (WITH TILTED COLUMN)

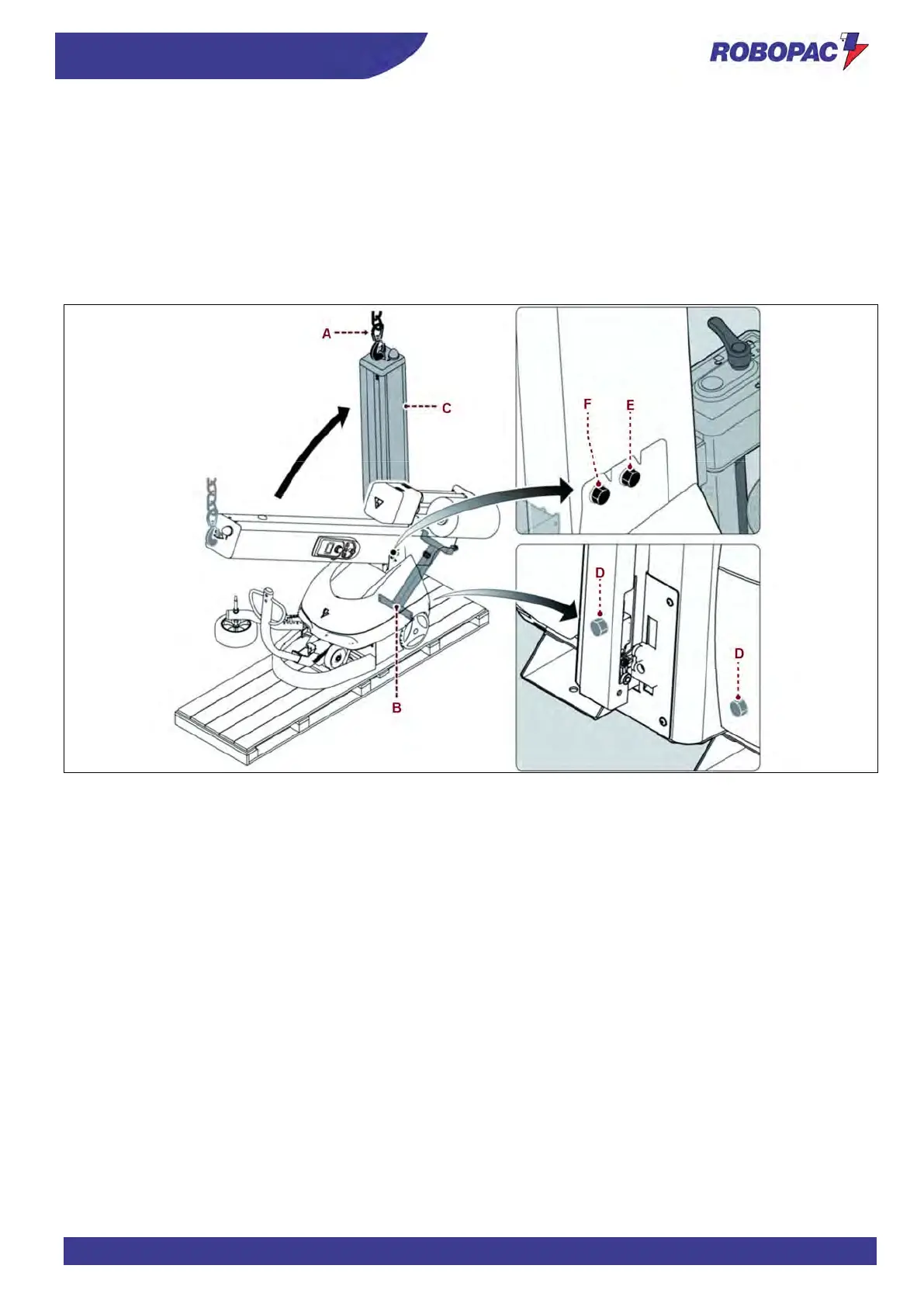

1. Hook the lifting device to the eyebolt (A) to keep the column in the correct position.
2. Remove the support (B).
3. Remove the stop (T).
4. Lift the column (C).
5. Tighten the fastening screws (D-E).
6. Tighten the screws (F) fastening the hinge.
7. Disengage the lifting device.
