5.4. BRAKE ADJUSTMENT
1.
Perform “machine safe stop”.
2.
Lift the battery cover (A).
3.
Loosen the lock nuts (E).
4.

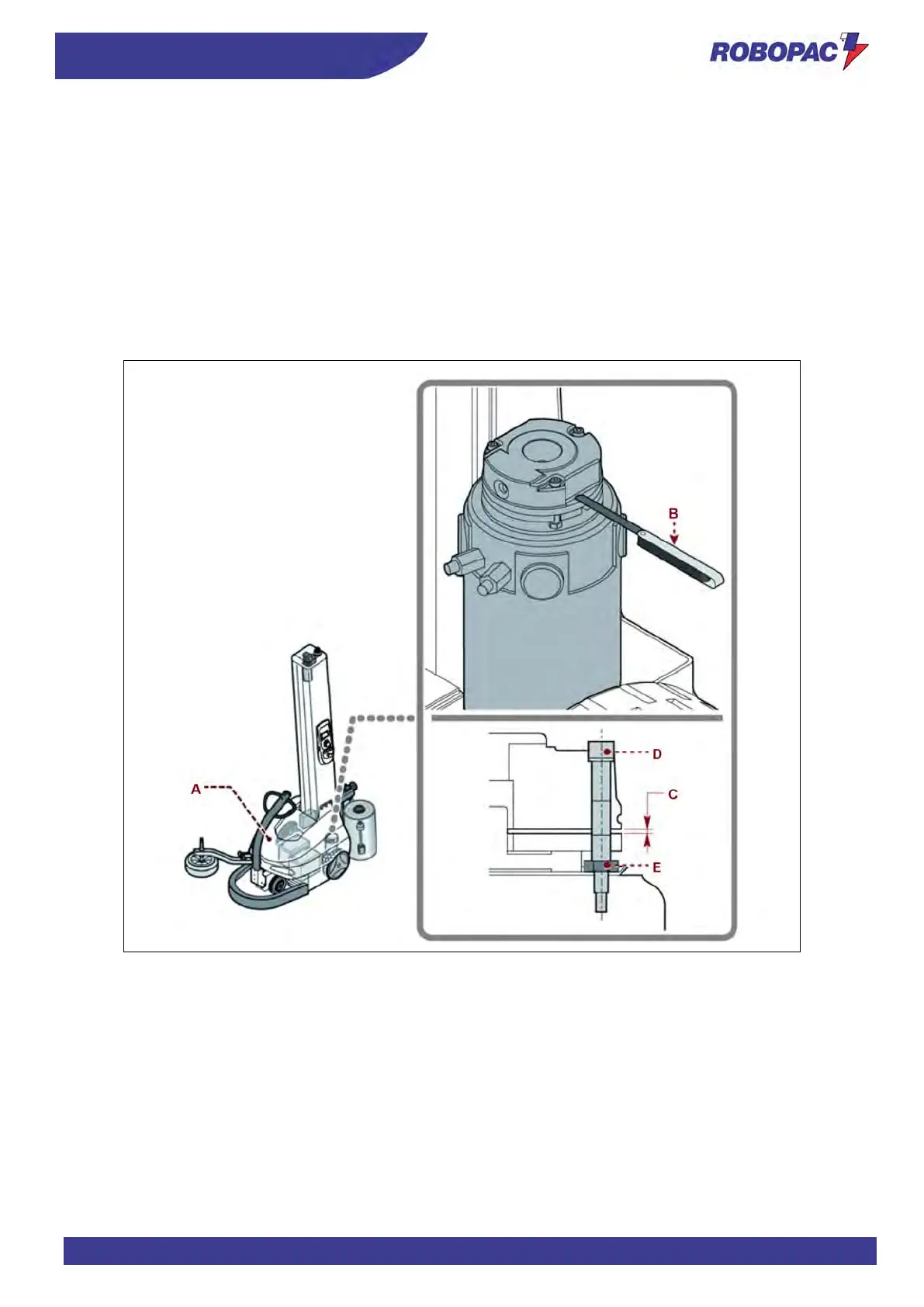

Insert a 0.25 mm feeler gauge (B) near the screw (D).
5.
Adjust the distance (C) between the magnet and the flange using the screw (D) until you feel a slight resistance
on the feeler gauge.
6.
Repeat the operation near the other screws.
7.
Try to insert a 0.3 mm feeler gauge between magnet and flange in correspondence of the screws (D).
The operation is carried out correctly if the feeler gauge cannot be inserted.
8.
Tighten lock nuts (E).
9.
Close the battery cover (A).
