Robopac ROBOT MASTER - Technical Specifications; Machine and Pallet Dimensions

ENG
TECHNICAL INFORMATION
32
3.6. TECHNICAL SPECIFICATIONS

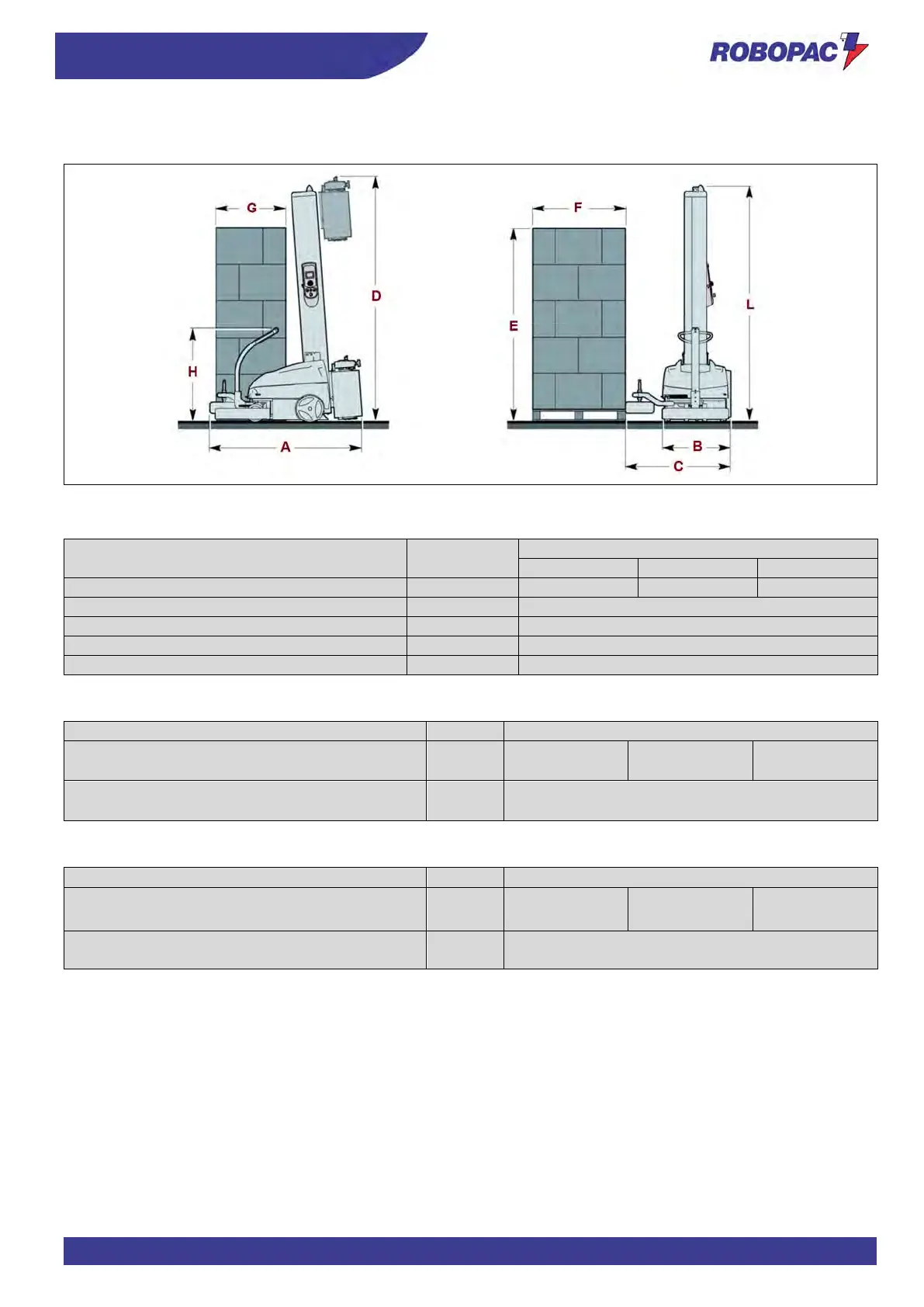

The illustration and the table include the machine dimensional specifications and technical data.
3.6.1. MACHINE AND PALLET DIMENSIONS
Description
Unit of
measurement
Machine model
FRD
FR
PDS
Machine (A) total length
mm
1672
1667
1667
Machine (B) width
mm
726
Machine (C) width with open feeler
mm
1136
Rudder (H) height
mm
1030
Pallet (FXG) dimensions
mm
≥ 600
Standard version
Pallet (E) height
mm
2200
Machine (D) maximum height
(E) max = 2200
mm 2596 2603 2823
Slide column (L) maximum height
(E) max = 2200
mm 2595
Optional version
Pallet (E) height
mm
2400
Machine (
D
) maximum height
(
E
) max = 2400
mm 2795 2802 3022
Slide column (L) maximum height
(E) max = 2400
mm 2794
