Robopac ROBOT MASTER - Installation (with Horizontal Column)

ENG
INFORMATION ON HANDLING AND INSTALLATION
40

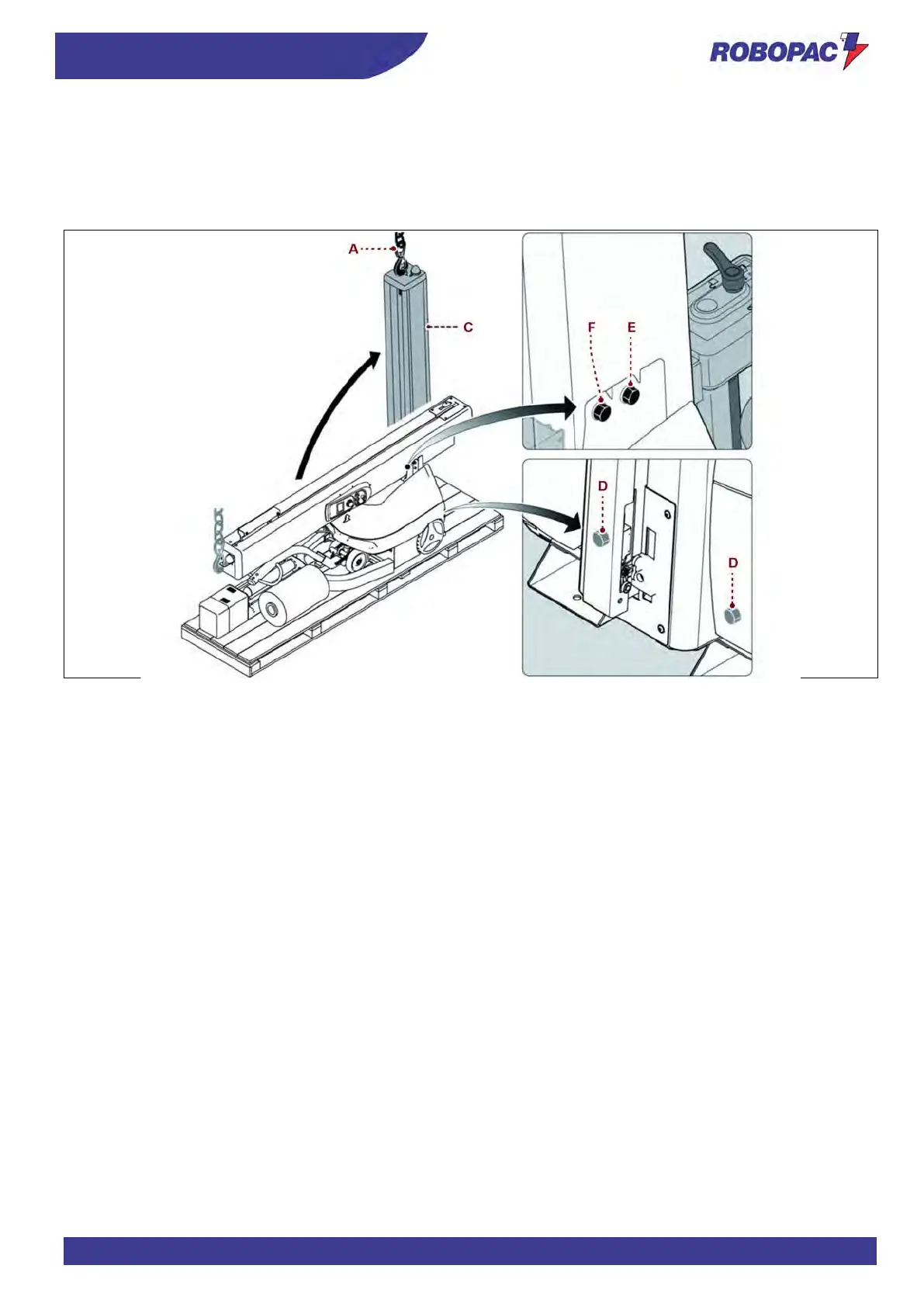

4.4.2. INSTALLATION (WITH HORIZONTAL COLUMN)
1. Hook the lifting device to the eyebolt (A) and lift the column (C).
2. Tighten the fastening screws (D-E).
3. Tighten the screws (F) fastening the hinge.
4. Disengage the lifting device.
