INFORMATION ON HANDLING AND INSTALLATION
ENG

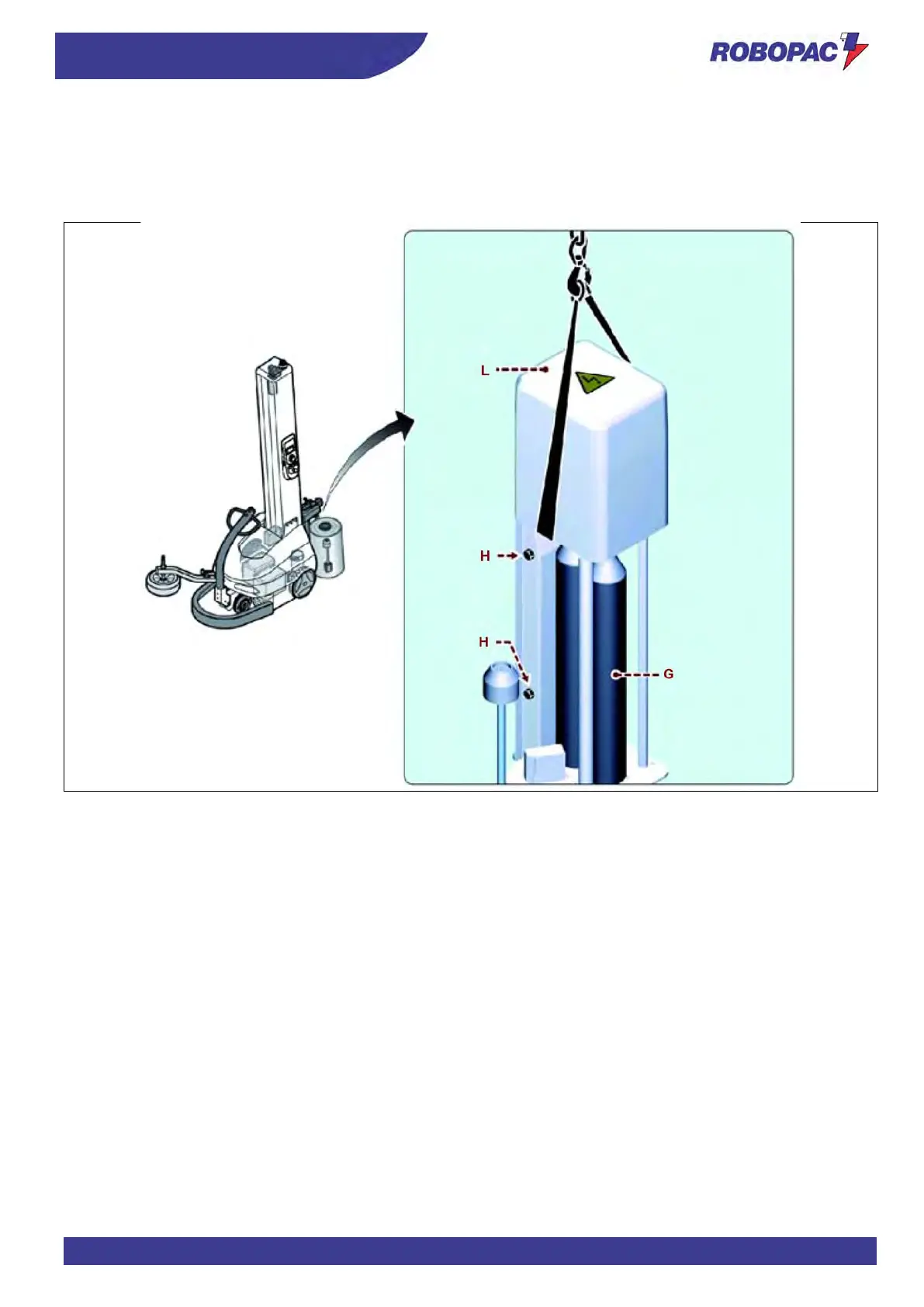

5. Hook the lifting device to the spool carriage (G).
6. Lift the spool carriage (G), move it closer to the column and fasten it using the screws (H).
7. Remove the guards (L).
8. Connect the electric connectors to the spool carriage terminal block.
9. Refit the guard (L).
