Robopac ROBOT MASTER - FEELER AND RUDDER INSTALLATION

ENG
INFORMATION ON HANDLING AND INSTALLATION
42

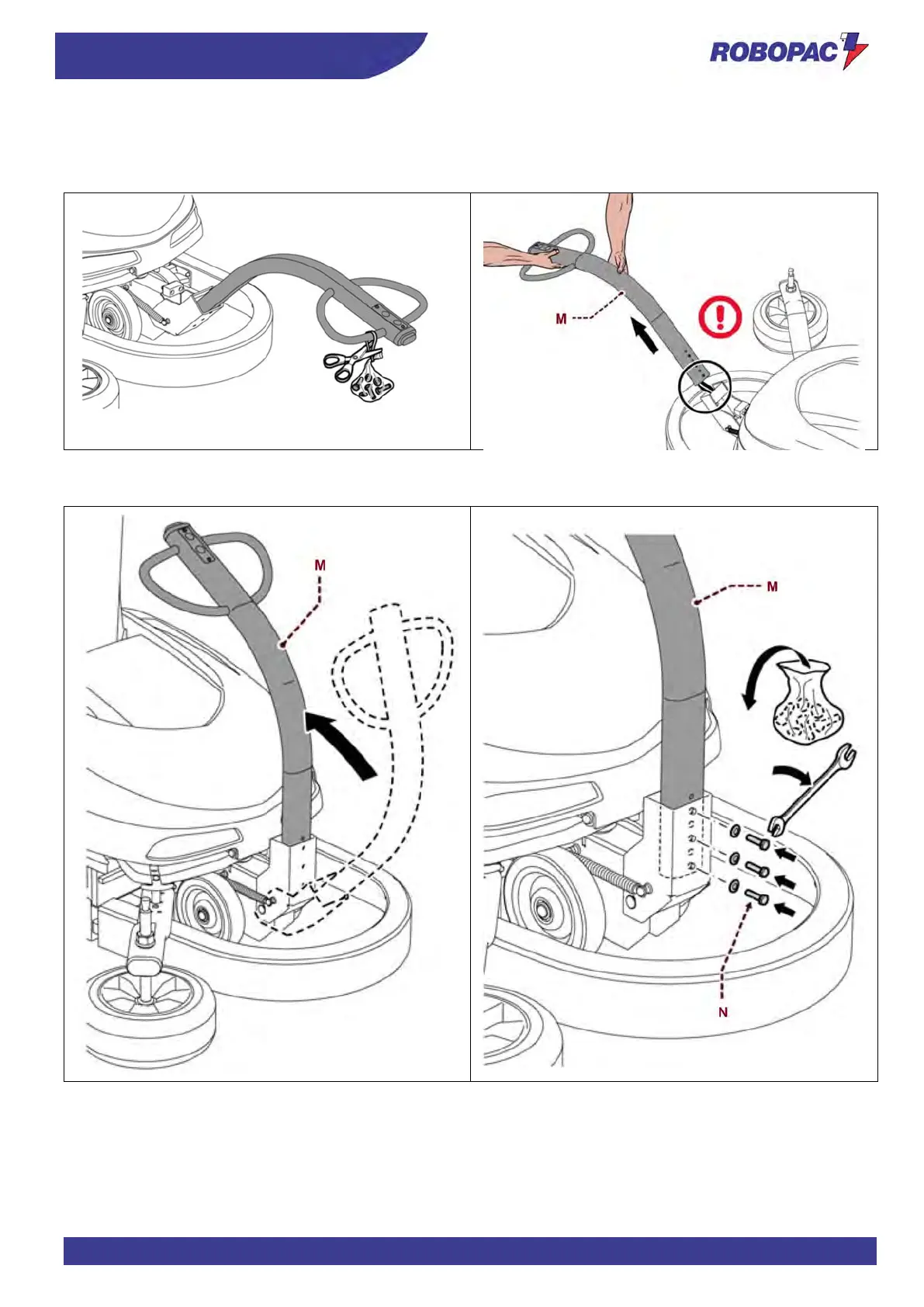

4.4.3. INSTALLATION OF FEELER AND RUDDER
1. Lift the rudder (M) and extract it from the machine.
2. Turn the rudder (M) and insert it into the machine support.
3. Lift the rudder (M) and fasten it with the screws (N).
