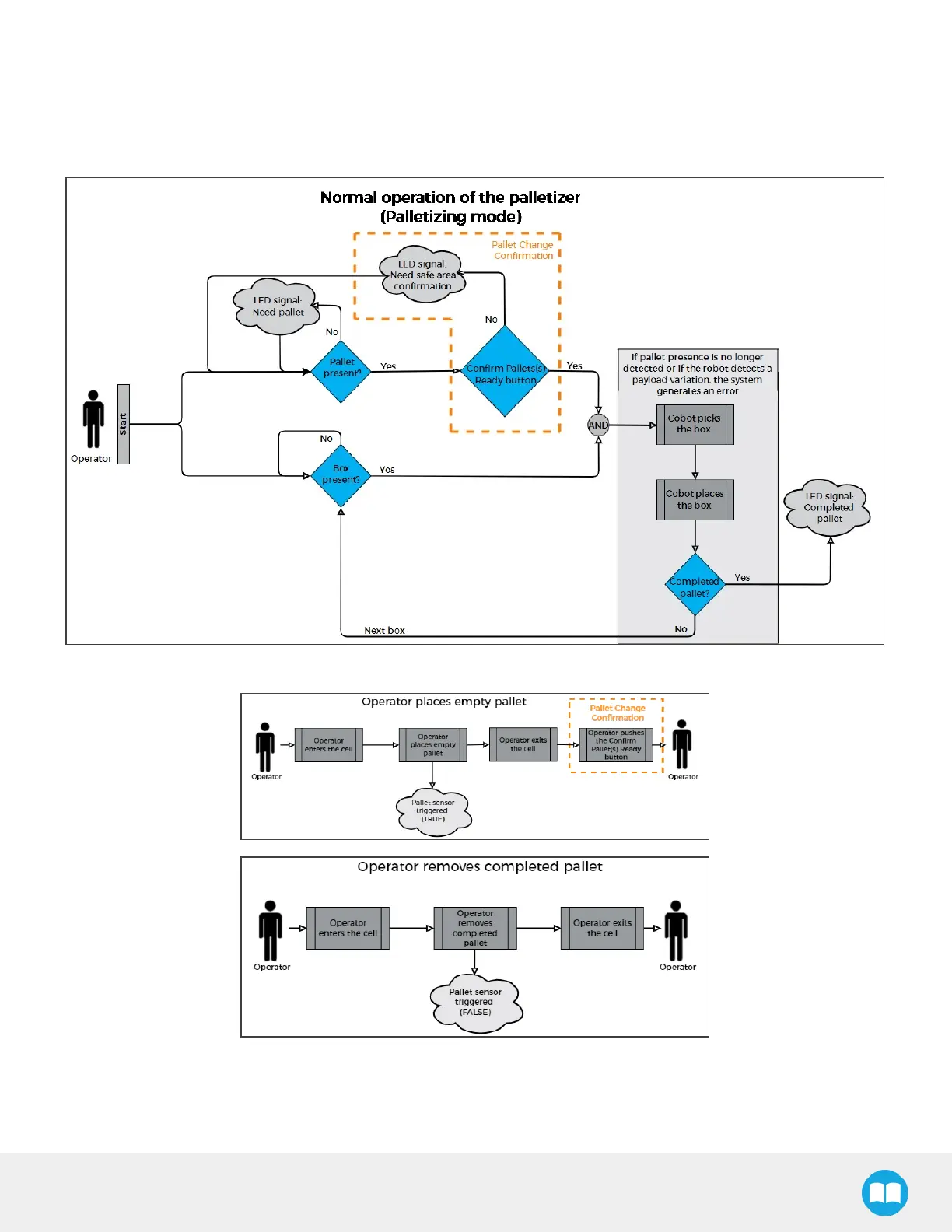

4.3.PalletizingOperationDiagrams
The following diagramsexplain the logic of the Palletizing Solution processbased on the operator's actions, as well as responses
such assignals, pallet and box sensor behaviors, etc. These stepsare also explained in the Palletizing Operation Instructions
section.
Please refer to the StatusLight Statessection for further information about light states.
65
