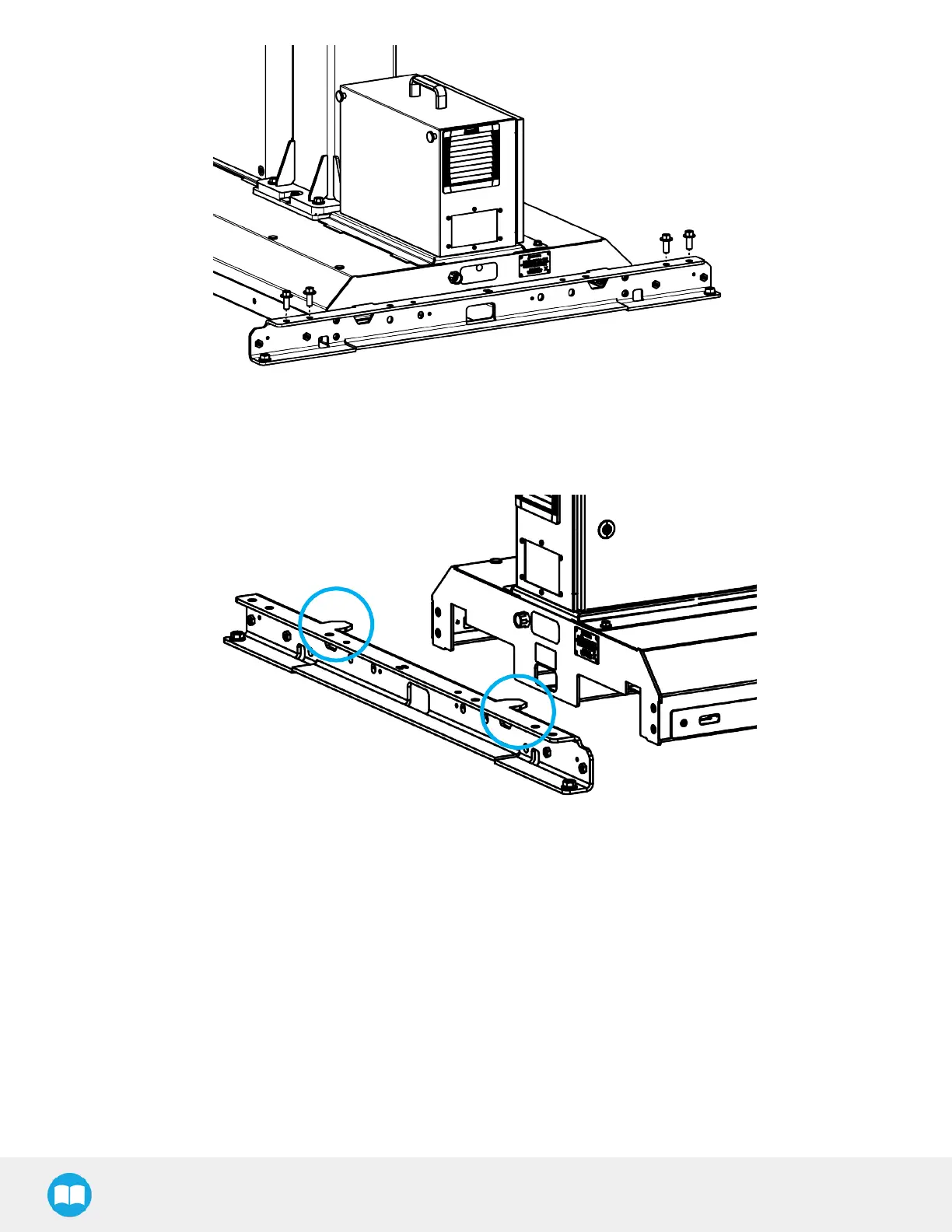

8. Slightly raise the forksso that the Solution isfreed from the anchors.
9. Slowly and carefully move the Solution, making sure the Solution remainsclose to the ground.
10. Reposition the Solution back to its original place using the tabs of the removable stopper as guides.
11. Perform steps 1 to 8 backwards (8 to 1)to secure the Solution. Please refer to Pedestal Installation section to apply the right
torque on the nuts of the removable stopper’s anchors.
72
