Drive Configuration Chapter 2

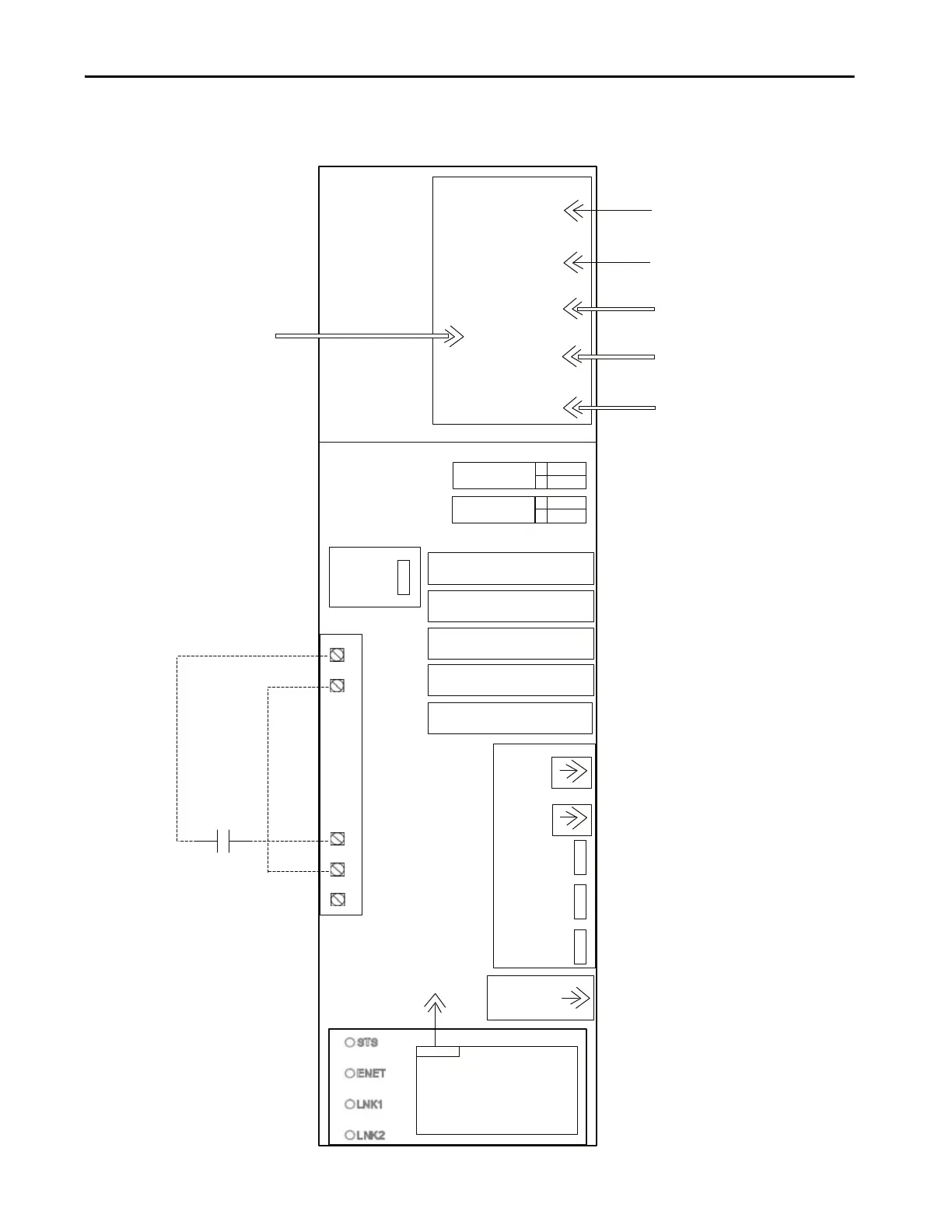

Figure 28 - PowerFlex 755TL Drive Control Pod
PowerFlex 755TL, Frame 8...10
Control Pod
To PF755T
Converter
Fiber
Cable
To AC Pre-charge
control board
Fiber
Cable(s)
To Line Side Converter
Power Module(s)
Fiber
Cable(s)
To Motor Side Inverter
Power Module(s)
To PF755T
Converter
To TAM
X
X
PORT 0
(MCB)
PORT 1
P11
ENABLE P155=PORT0:
P220 (DIG IN STS), DI0
DIGITAL INPUT 24VDC
DIGITAL INPUT
COMMON
DIGITAL INPUT 120VAC
9
9
9
HUNDREDS
TENS
ONES
EMB ENET
P2
DRIVE MOUNTED HUMAN
INTERFACE MODULE
KIT#: 20-HIM-C6
PORT 2 / 3
P10
P8 SAFETY
IN
OUT
IN
OUT
P7 ENABLE
POWERFLEX
755T
VER. X.XX
PORT 4
<>
PORT 5
<>
PORT 6
<>
PORT 7
<>
PORT 8
<>
TB1
+24v
24VC
DI0DC
DIC
DI0AC
Fiber
Tranceiver
Board
M0...M9
L0...L9
ACP0
Pre-
Charge
L-CTL
M-CTL
P14
P13
24VDC
Aux
24VDC
Input
P1
x
CONTROL
MODE
SELECTOR
Fiber
Cable
ACP1/TAM
Torq Acc
Mod
XENB
