6-10 Using Explicit Messaging
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P
ControlLogix Example Ladder Logic Program to Write Multiple
Parameters
A Scattered Write message is used to write to multiple parameters. This
write message example writes the following values to these five 32-bit
REAL (floating point) parameters in a PowerFlex 750-Series drive:
Table 6.D Example Controller Tags for Write Multiple Parameter Messaging
Program

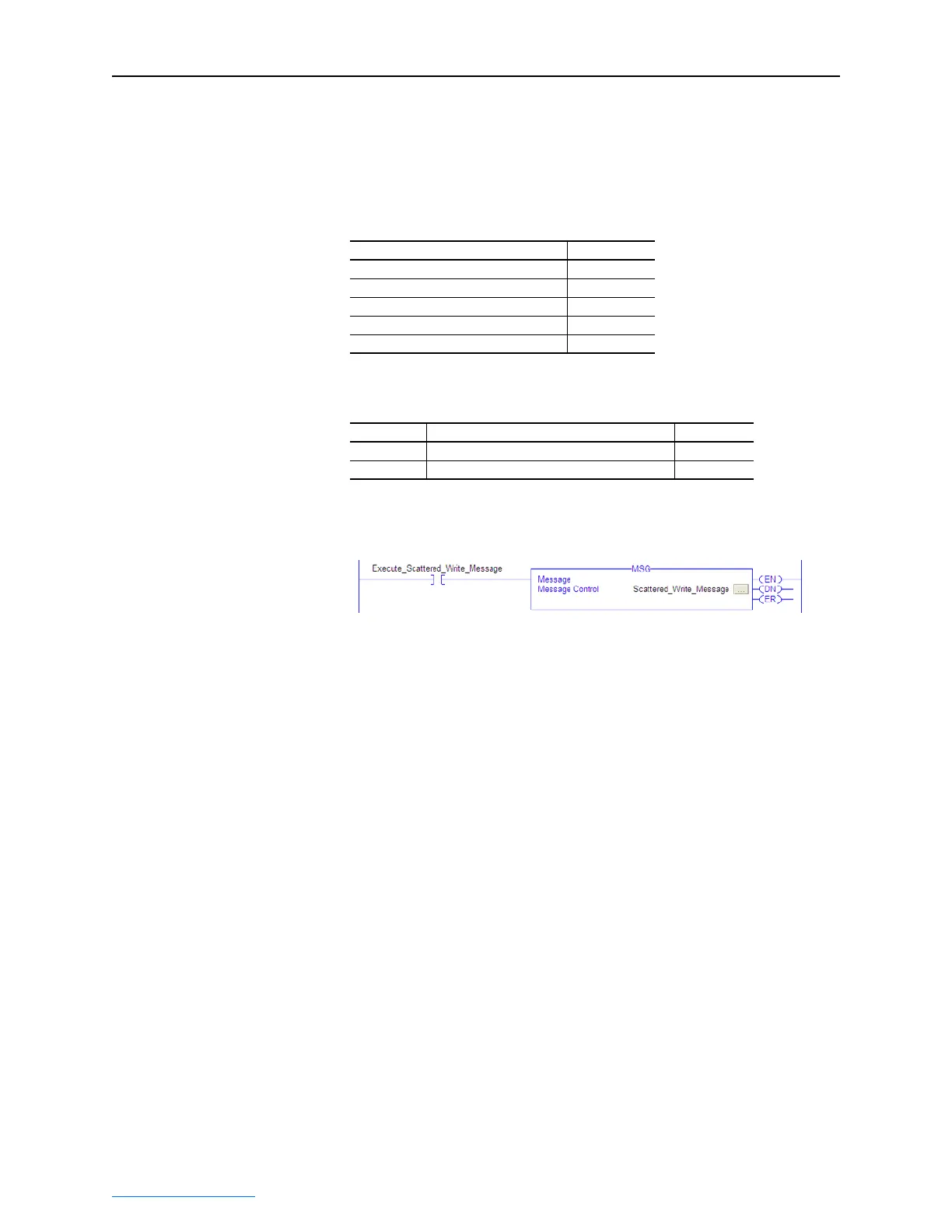

Figure 6.10 Example Ladder Logic Explicit Messaging Program for Write
Multiple
PowerFlex 750-Series Drive Parameter Write Value
536 - [Accel Time 2] 11.1 Sec.
538 - [Decel Time 2] 22.2 Sec.
575 - [Preset Speed 5] 33.3 Hz.
576 - [Preset Speed 6] 44.4 Hz.
577 - [Preset Speed 7] 55.5 Hz.
Operand Controller Tags for Write Multiple Message Data Type
XIC Execute_Scattered_Write_Message BOOL
MSG Scattered_Write_Message MESSAGE
To Next Page
