Configuring the Adapter 3-3
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P

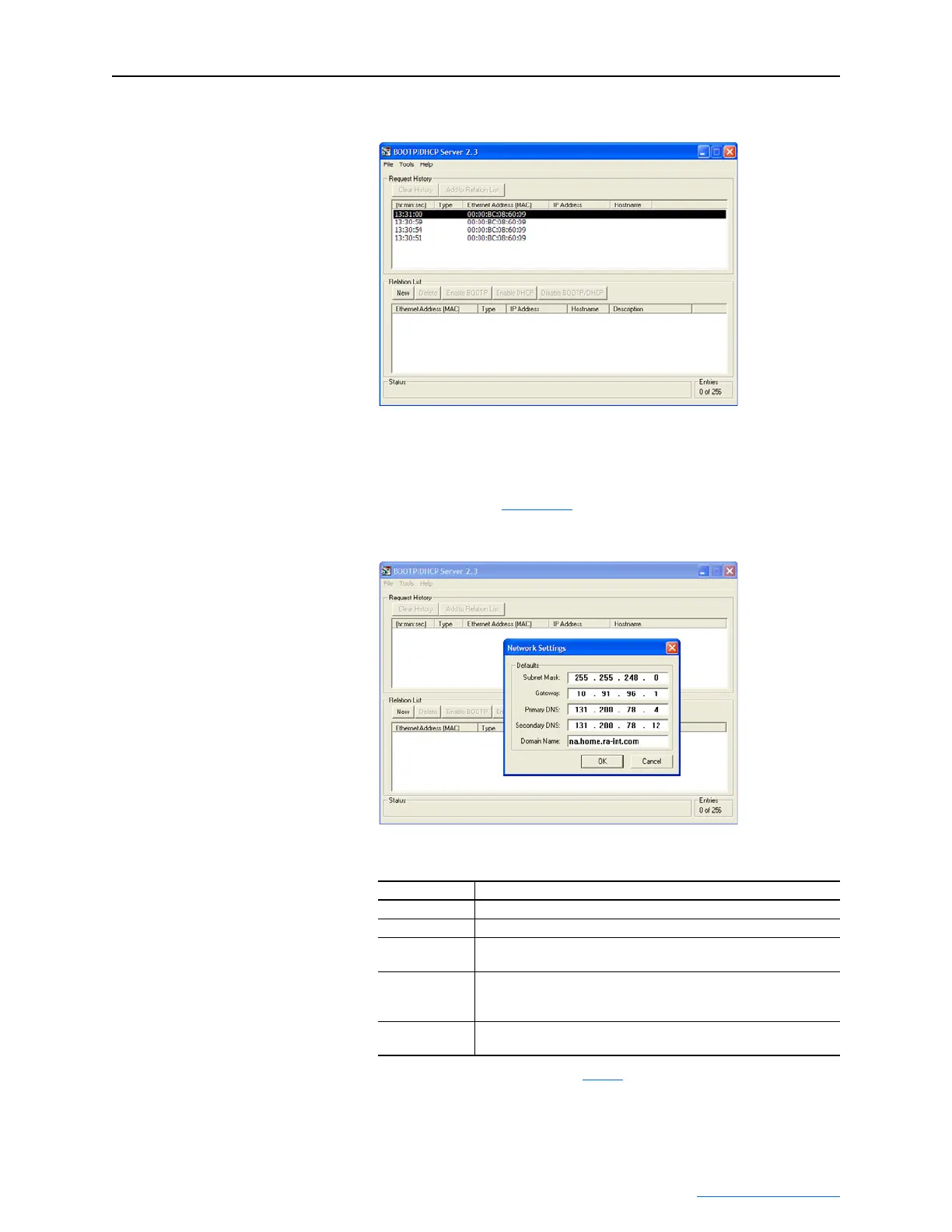

Figure 3.2 BOOTP Server Window
3. To properly configure devices on your EtherNet/IP network, you
must configure settings in the BOOTP software to match the
network. Select Tools > Network Settings to display the Network
Settings window (Figure 3.3
).
Figure 3.3 Network Settings Window
4. Edit the following:
5. Click OK to apply the settings. Devices on the network issuing
BOOTP requests appear in the BOOTP Request History list.
Box Type
Subnet Mask
(1)
(1)
For definitions of these terms, refer to the Glossary.
The subnet mask for the embedded EtherNet/IP adapter’s network.
Gateway
(1)
The IP address of the gateway device on the adapter’s network.
Primary DNS The address of the primary DNS server to be used on the local end of
the link for negotiating with remote devices.
Secondary DNS Optional—the address of the secondary DNS server to be used on the
local end of the link for negotiating with remote devices when the
primary DNS server is unavailable.
Domain Name The text name corresponding to the numeric IP address that was
assigned to the server that controls the network.
