Configuring the I/O 4-3
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P

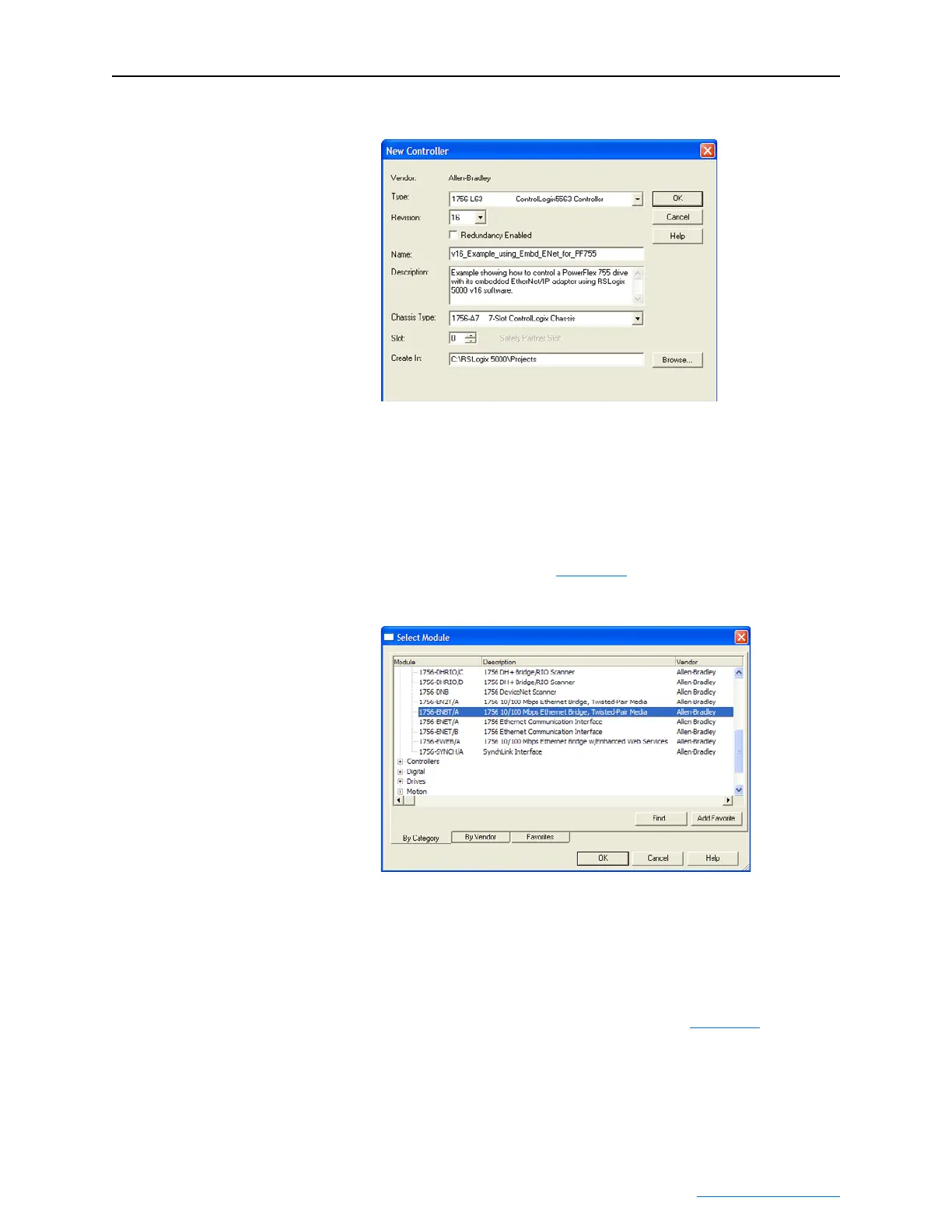

Figure 4.3 New Controller Screen (RSLogix 5000 v16 shown)
Select the appropriate choices for the fields in the screen to match
your application. Then click OK. The RSLogix 5000 window
reappears with the treeview in the left pane.
2. In the treeview, right-click the I/O Configuration folder and select
New Module… The Select Module screen appears. Expand the
Communications group to display all of the available
communication modules (Figure 4.4
).
Figure 4.4 Bridge Select Module Screen
3. In the list, select the EtherNet/IP bridge used by your controller. In
this example, we use a 1756-ENBT EtherNet/IP Bridge (Series A),
so the 1756-ENBT/A option is selected. Then click OK. In the
Select Major Revision pop-up dialog box, select the major revision
of its firmware.
4. Click OK. The bridge’s New Module screen (Figure 4.5
) appears.
