Viewing the Adapter Web Pages 8-11
PowerFlex® 755 Drive Embedded EtherNet/IP Adapter User Manual
Publication 750COM-UM001A-EN-P

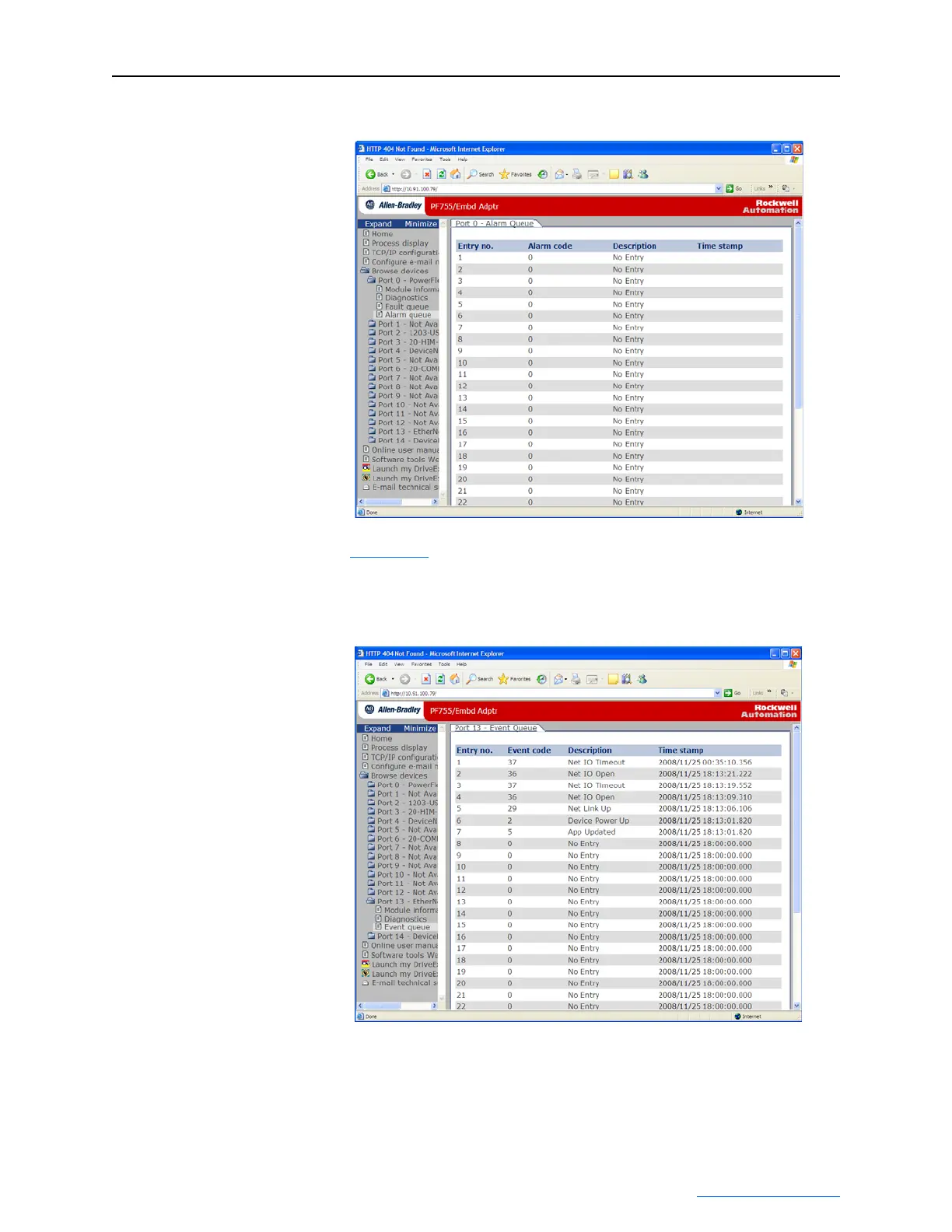

Figure 8.9 Example of Port 00 (PowerFlex 755 Drive) Alarm Queue Page
Figure 8.10 shows an example event queue page for the Port 13 device
(embedded EtherNet/IP adapter).
Figure 8.10 Example of Port 13 (Embedded EtherNet/IP Adapter) Event Queue
Page
