MicroLogix 1100 Example Get Attribute Single Response Data
In this example, we use the data table address in Figure 6.39 to store the
response value (1.77 amps) that was read from drive parameter 007 -
[Output Current].

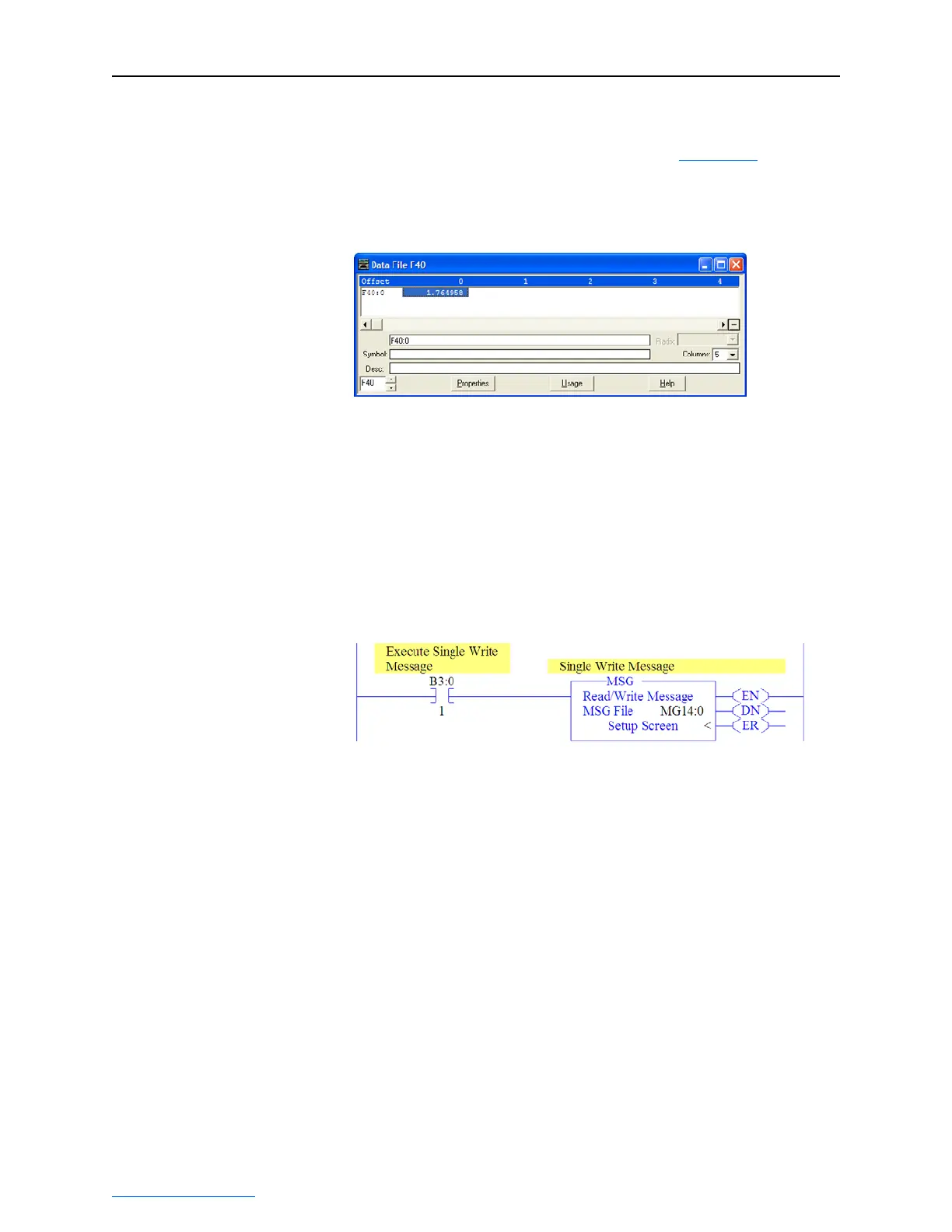

Figure 6.39 Example Get Attribute Single Response Data File
MicroLogix 1100 Example Ladder Logic Program to Write Single
Parameter
A Generic Set Attribute Single message is used to write to a single
parameter. This write message example writes a value to the 32-bit
REAL (floating point) parameter 535 - [Accel Time 1] in a PowerFlex
750-Series drive.
Figure 6.40 Example Ladder Logic Explicit Messaging Program for Write Single
